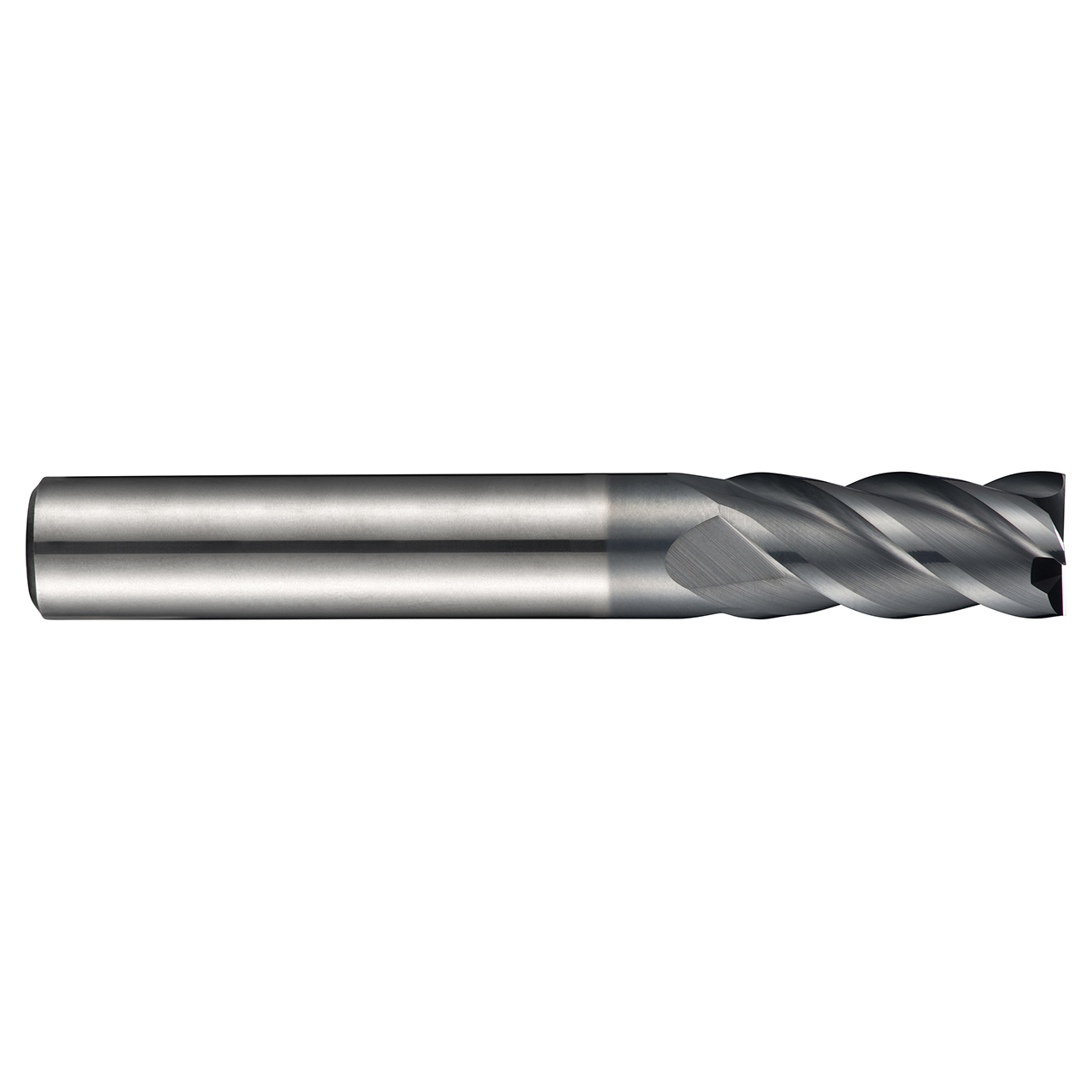

Dormer S7166.0 | 0.2362" Diameter x 1.9685" OAL 4 Flute AlCrN Coated Square End Mill

$49.02
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141385
UPC:
7320760690079
Weight:
0.86 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S716 4-flute milling cutters are manufactured from premium carbide for extended tool life and great performance. The aluminium nitride coating further improves tool life and gives better performance when milling difficult to machine materials. The tools are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels and have a medium length flute, designed to provide good rigidity for standard profile milling. S716 milling cutters have a 40 degree helix which makes them great for high performance slotting and profiling on CNC machines.


Product Specifications
Max Depth of Cut (mm)16mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle10
No of Flute4
Flute Helix Angle40
CoatingAlCrN
Surface ColorBlack-Deep Purple
