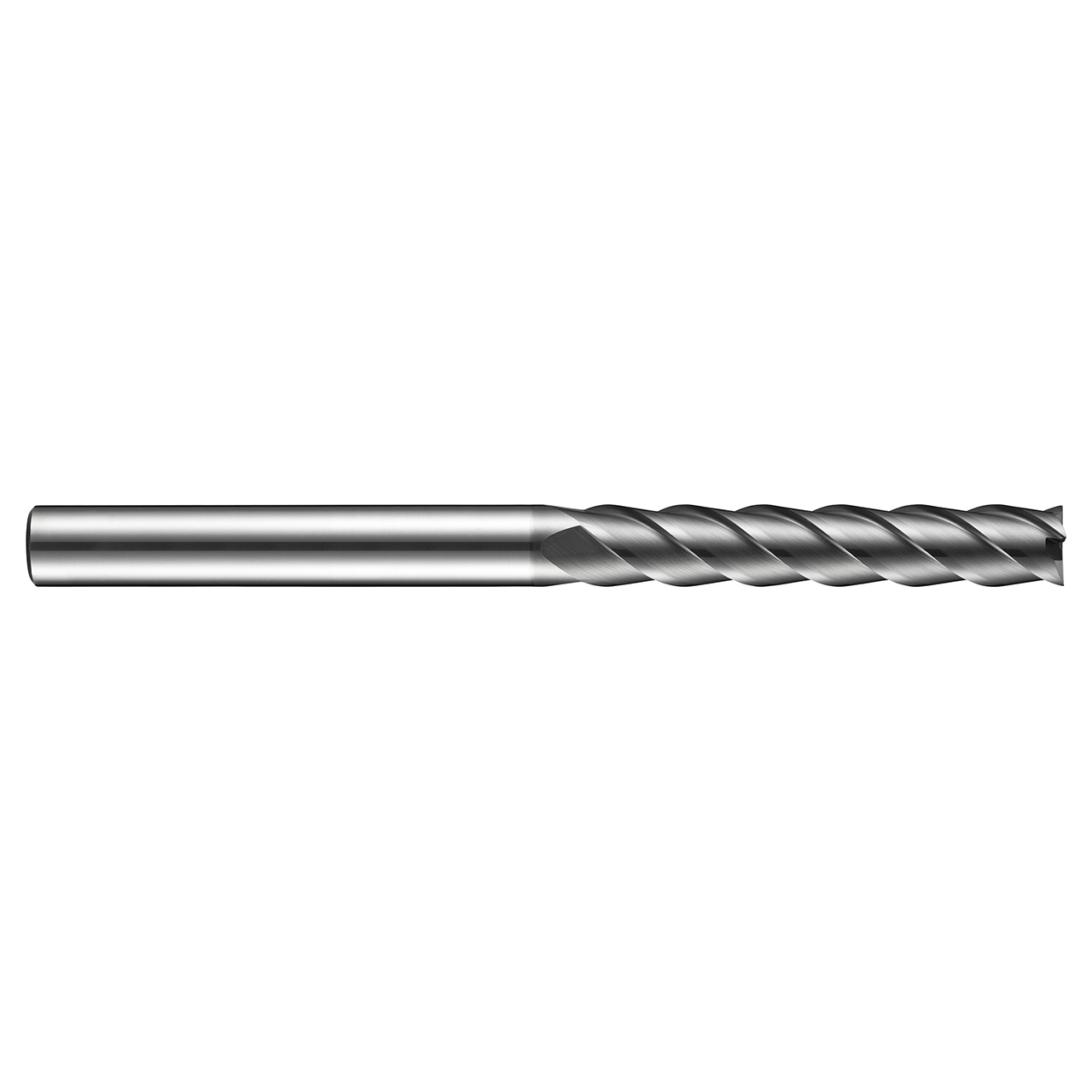

S718 4-flute cutters are part of the Dormer range of carbide milling cutters. Manufactured from premium carbide, the tools will provide superior performance and a long tool life, whilst the aluminium chrome nitride coating further improves performance and extends tool life. The cutters are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron. With an extra long series flute design, S718 milling cutters provide the rigidity needed for profile milling deep walls, whilst the 40 degree helix will ensure high performance profiling on CNC machines.
| Max Depth of Cut (mm) | 75mm |
| Connection Diameter (Inch) | 0.7087" |
| Cutting Diameter (Inch) | 0.7087" |
| Overall Length (Inch) | 5.9055" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 4 |
| Flute Helix Angle | 40 |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
