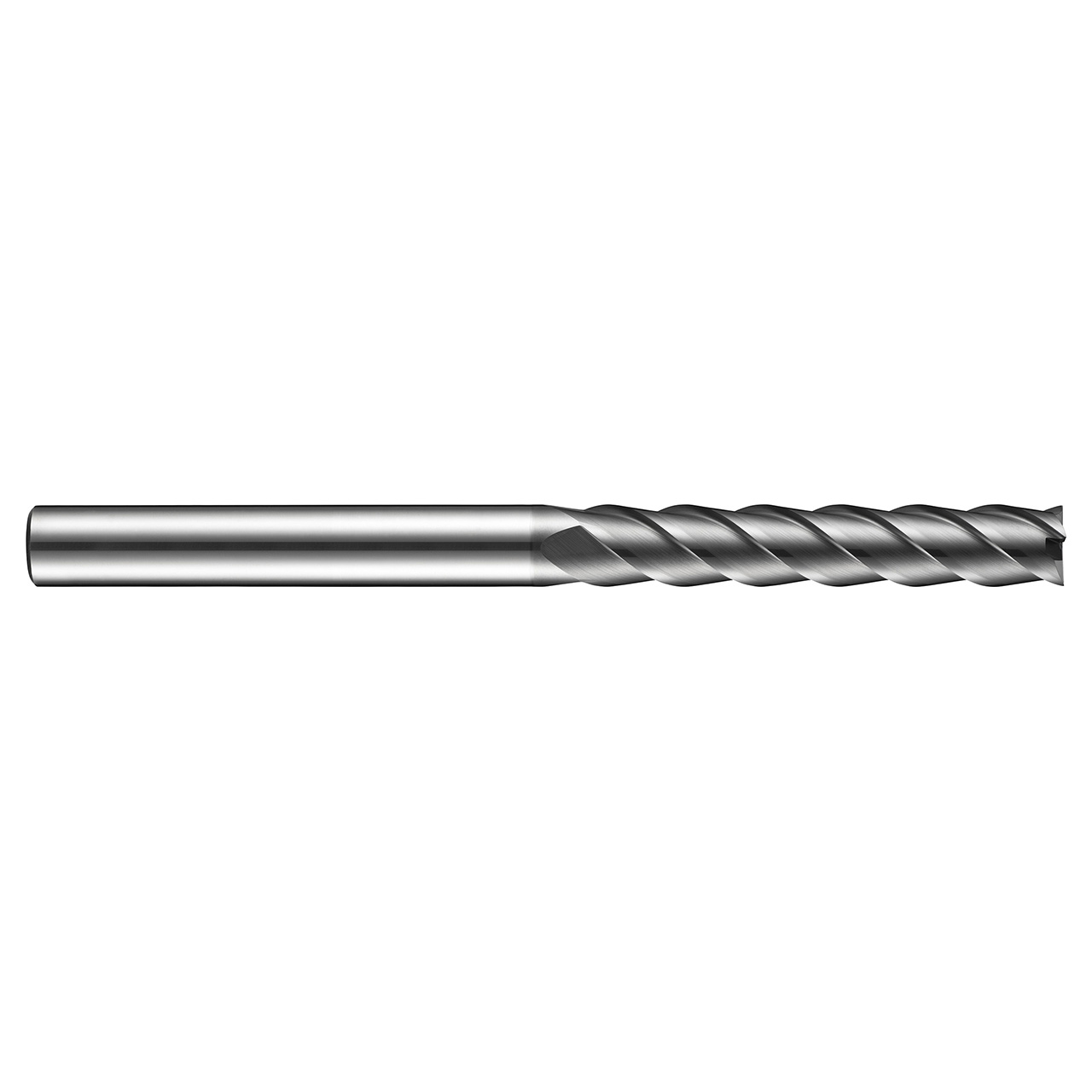

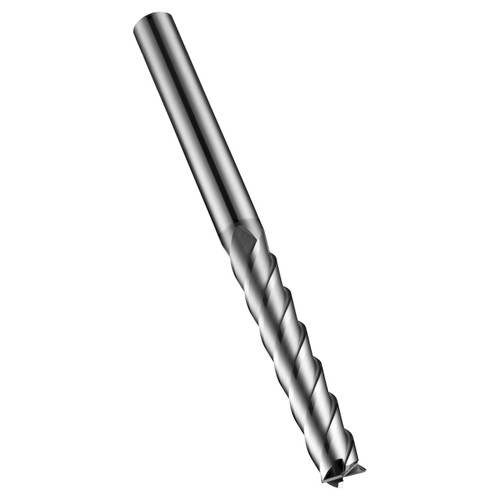

Dormer S7183.0 | 0.1181" Diameter x 3.937" OAL 4 Flute AlCrN Coated Square End Mill

$59.70
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141109
UPC:
7320760683187
Weight:
0.55 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S718 4-flute cutters are part of the Dormer range of carbide milling cutters. Manufactured from premium carbide, the tools will provide superior performance and a long tool life, whilst the aluminium chrome nitride coating further improves performance and extends tool life. The cutters are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron. With an extra long series flute design, S718 milling cutters provide the rigidity needed for profile milling deep walls, whilst the 40 degree helix will ensure high performance profiling on CNC machines.


Product Specifications
Max Depth of Cut (mm)25mm
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle10
No of Flute4
Flute Helix Angle40
CoatingAlCrN
Surface ColorBlack-Deep Purple
