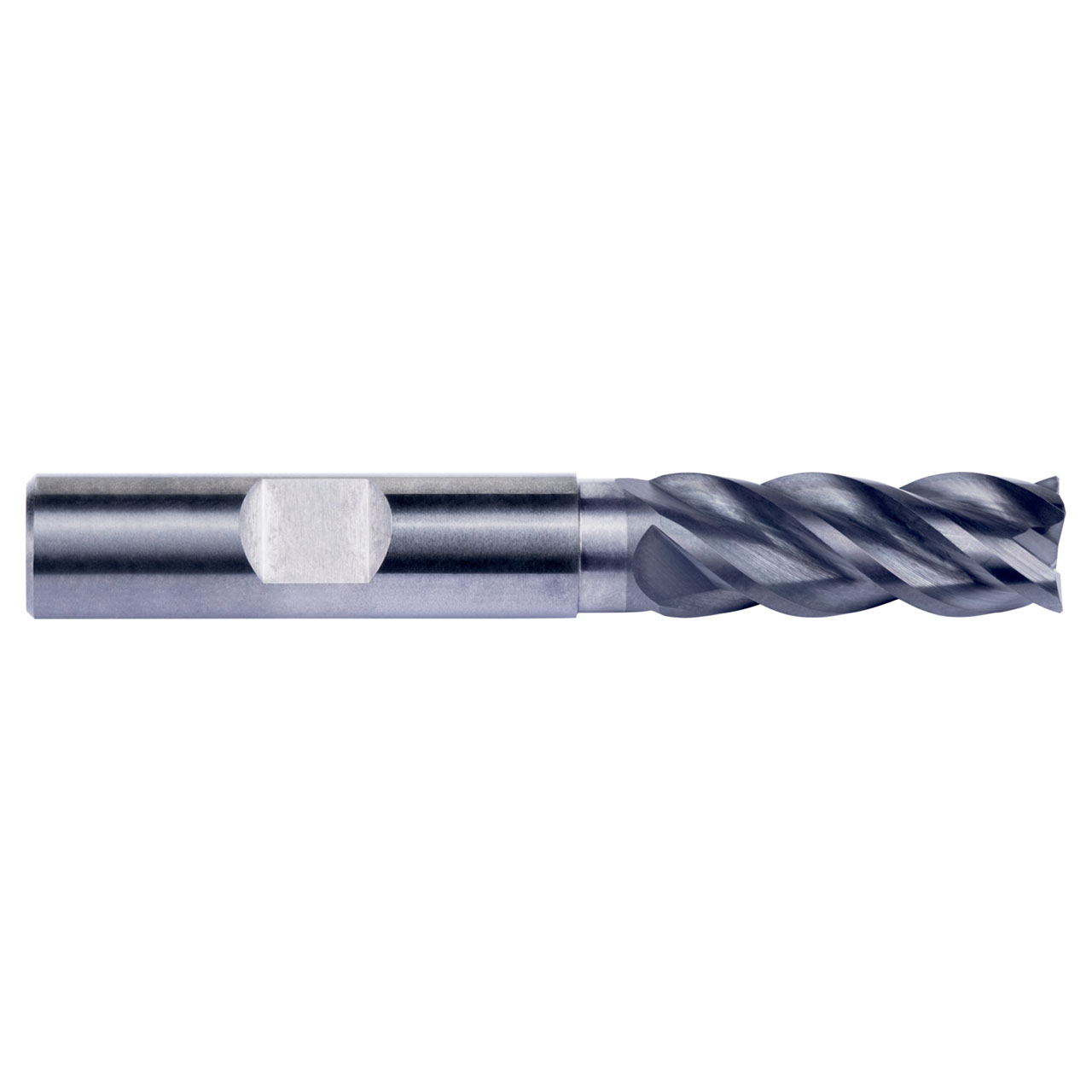

S722HB milling cutters have a DIN 6535 HB shank for secure holding to achieve high metal removal rates, with a very versatile design for slotting, ramping, plunging and contouring. The aluminium chromium nitride coating reduces friction and provides excellent wear resistance for increased tool life, whilst the positive geometry results in a smooth cutting action to cut down on work hardening. S722HB milling cutters have a neck recess so the tool avoids contact with the walls when shoulder milling.
| Usable Length (mm) | 37mm |
| Max Depth of Cut (mm) | 26mm |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 3.2677" |
| Material Code | HM |
| Radial Rake Angle | 7 |
| No of Flute | 4 |
| Flute Helix Angle | 40 |
| Corner Radius (mm) | 0.2mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
