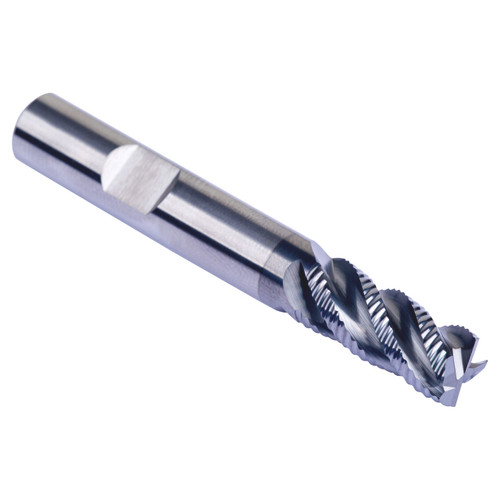

Part of Dormer's range of cutters, S765HB milling cutters have a smooth cutting action to reduce work hardening, thanks to the positive geometry. The NRA profile breaks swarf into manageable pieces to reduce spindle load and increase metal removal whilst the DIN 6535 HB shank offers secure holding for high metal removal rates. Reducing friction and providing excellent wear resistance, the aluminium chromium nitride coating will greatly increase tool life. S765HB milling cutters are a very versatile choice and can be used for slotting, plunging, ramping and contouring.
Max Depth of Cut (mm) | 22mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 2.7559" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 4 |
Flute Helix Angle | 40 |
Corner Chamfer Width (mm) | 0.2mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
