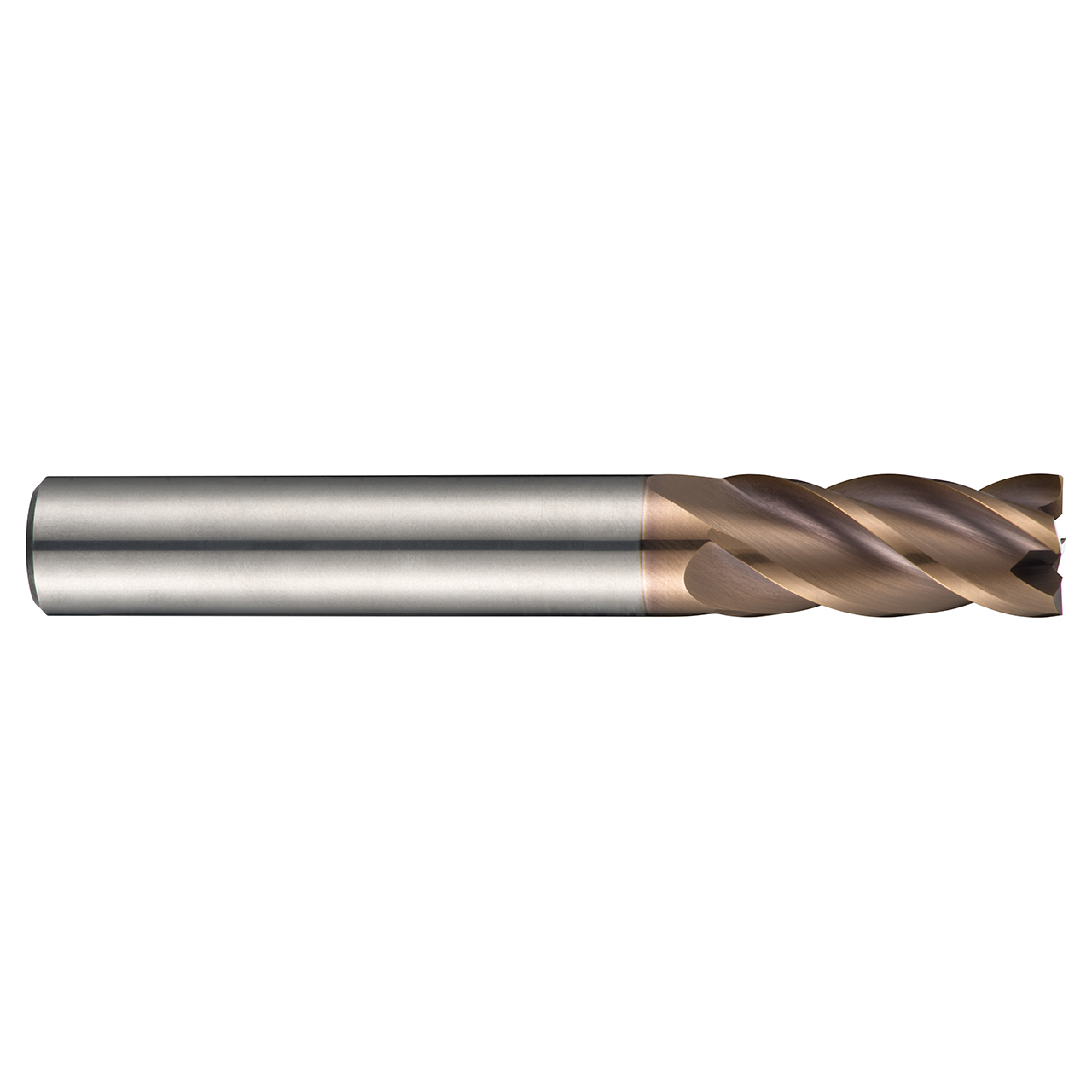

S766 4-flute milling cutters are manufactured from premium carbide and have a titanium silicon nitride coating for superior performance, extended tool life and great results when milling difficult to machine materials. They are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron. High rigidity for standard profile milling is provided by the medium length flute, whilst the unequal helix and unequal flute divide on S766 cutters is designed to reduce vibration and improve surface finish when the tools are used in CNC machines.
| Max Depth of Cut (mm) | 22mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.8346" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 4 |
| Corner Chamfer Angle | 45 |
| Corner Chamfer Width (mm) | 0.2mm |
| Coating | TiSiN |
| Surface Color | Rose Gold |
