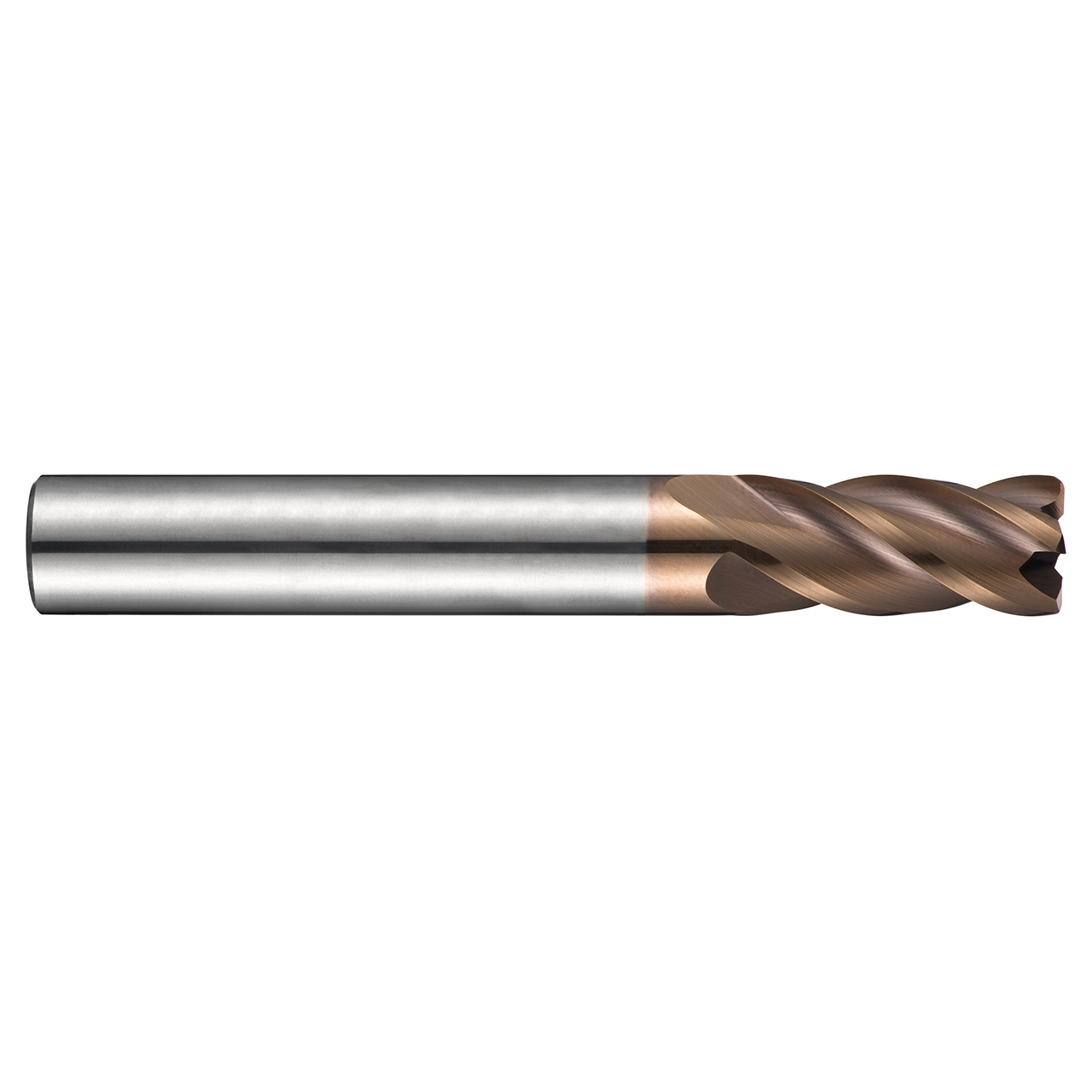

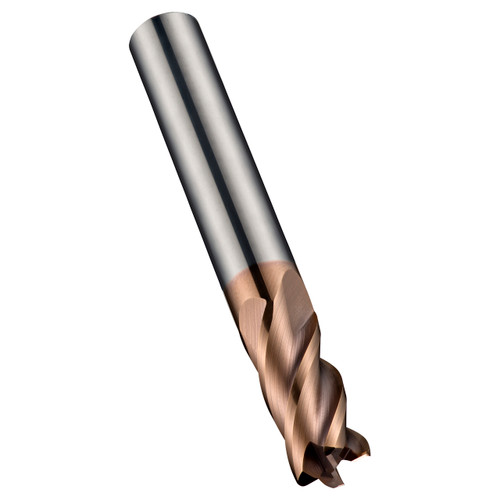

S767 4-flute corner radius milling cutters have a medium length flute with corner radius, for high rigidity for standard profile milling where a fillet radius is needed. They are manufactured from premium carbide for great performance and longer tool life, further improved by the titanium silicon nitride coating, which also gives great performance when milling materials which are difficult to machine.S767 milling cutters have both an unequal helix and unequal flute divide. These features are designed to reduce vibration and improve surface finish when used in CNC machines. S767 tools can be used for plunging, ramping and profile milling in stainless steels, cast iron and steels.
Max Depth of Cut (mm) | 20mm |
Connection Diameter (Inch) | 0.315" |
Cutting Diameter (Inch) | 0.315" |
Overall Length (Inch) | 2.5197" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 4 |
Corner Radius (mm) | 0.3mm |
Coating | TiSiN |
Surface Color | Rose Gold |
