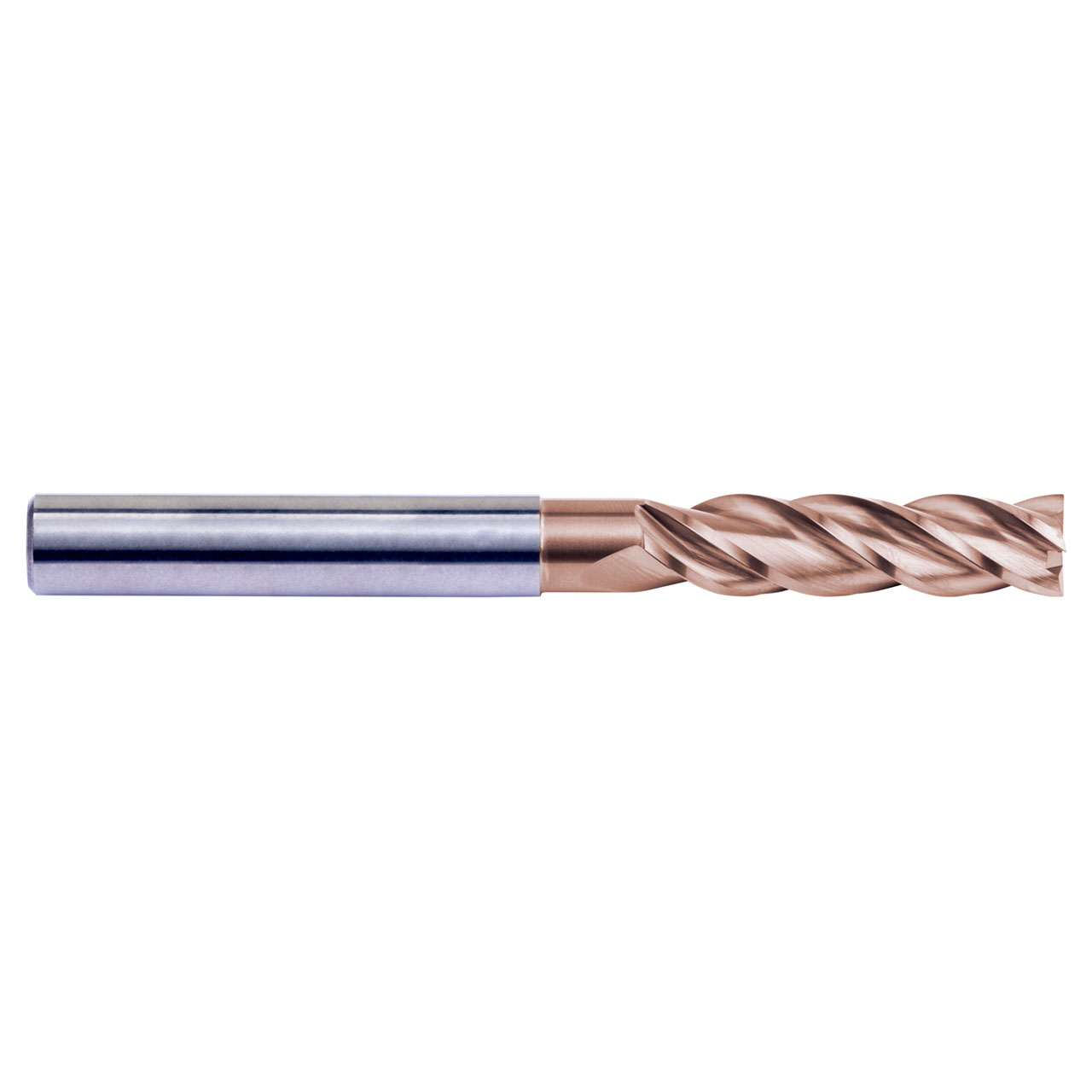

S768 long series milling cutters make it possible to machine deeper walls and pockets, and have a neck recess to avoid contact with walls when shoulder milling. With a positive geometry providing a smooth cutting action to reduce work hardening, the tools have a titanium silicon nitride coating which provides excellent wear resistance and reduces friction, increasing tool life. S768 milling cutters have an unequal helix which serves to reduce chatter and vibration for improved surface finish and tool life.
| Usable Length (mm) | 38mm |
| Max Depth of Cut (mm) | 30mm |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.9528" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 4 |
| Corner Radius (mm) | 0.2mm |
| Coating | TiSiN |
| Surface Color | Rose Gold |
