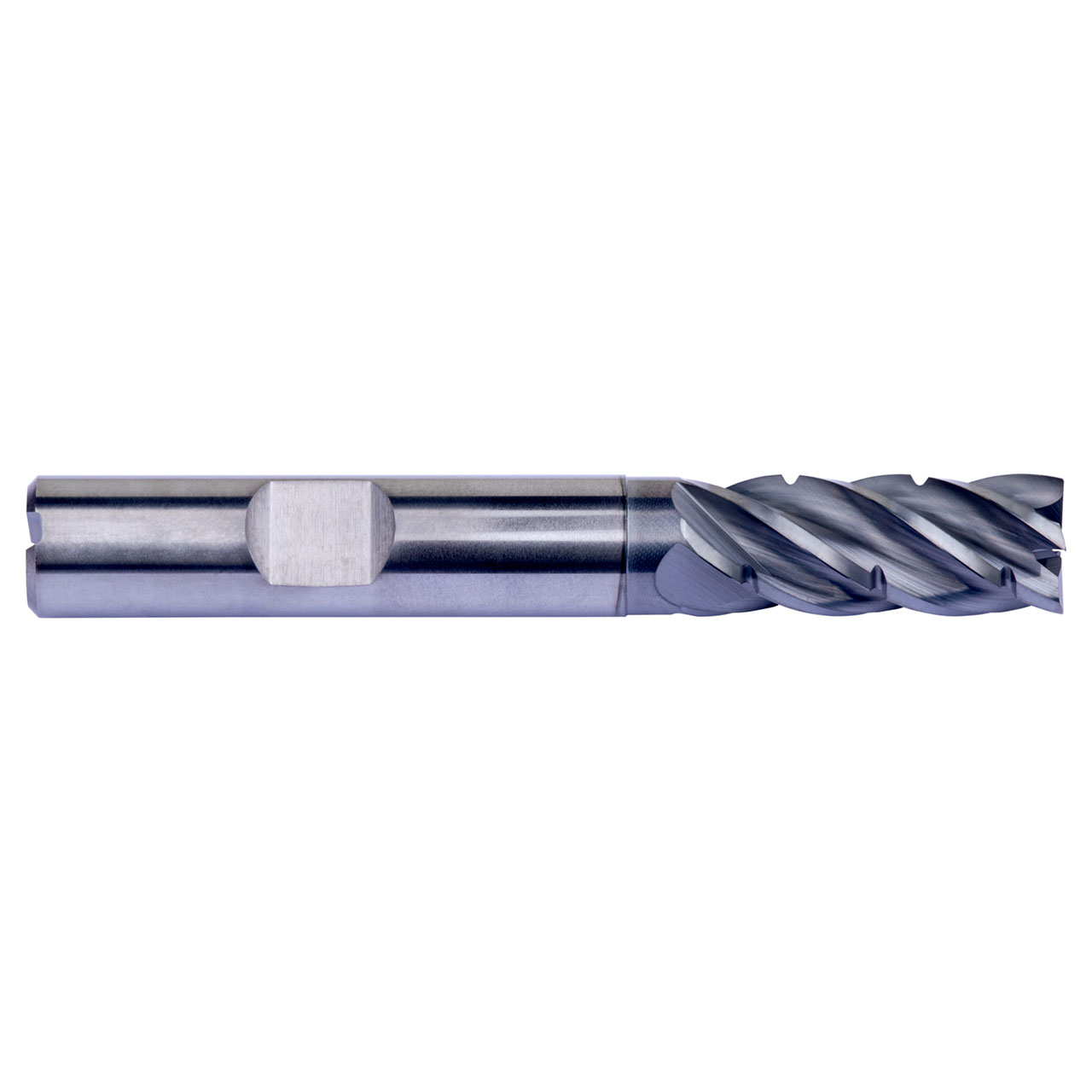

Dormer S771HB16.0 | 0.6299" Diameter x 3.622" OAL 5 Flute AlCrN Coated Trochoidal End Mill

$371.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25212027
Weight:
7.71 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

With through coolant to improve swarf removal and provide assistance with difficult to machine materials, S771HB milling cutters have a design which incorporates 5 flutes to reduce vibration at higher feed rates. The FS style chip dividers break swarf into manageable pieces which reduces spindle load and increases metal removal, whilst chatter and vibrations by the unequal helix for improved surface finish and tool life. S771HB 5-flute milling cutters have a coating of aluminium chromium nitride which reduces friction and leads to excellent wear resistance for increased tool life.


Product Specifications
Usable Length (mm)44mm
Max Depth of Cut (mm)39mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle10
No of Flute5
Corner Radius (mm)0.3mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
