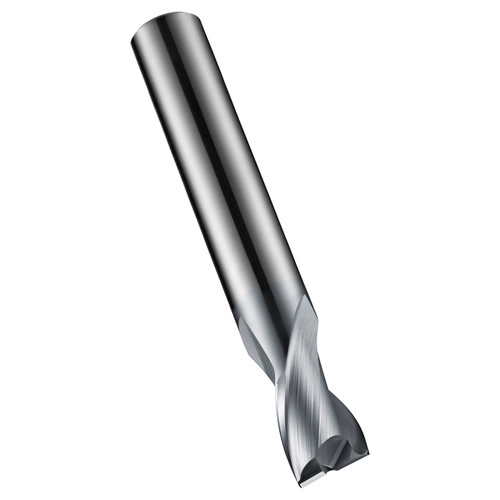

S802HA milling cutters from Dormer have a short length flute design, giving them high rigidity for milling shallow slots and the accurate diameter gives you a high degree of confidence for milling standard keyway slots to a P9 tolerance. The tools are manufactured from premium carbide with an Alcrona coating which, together, ensure superior performance, particularly when milling difficult to machine materials, and also extend tool life. S802HA 2-flute slot drills have a straight shank and are very versatile, being suitable for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous materials.
Max Depth of Cut (mm) | 4mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1181" |
Overall Length (Inch) | 1.9685" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 2 |
Flute Helix Angle | 28 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.08mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
