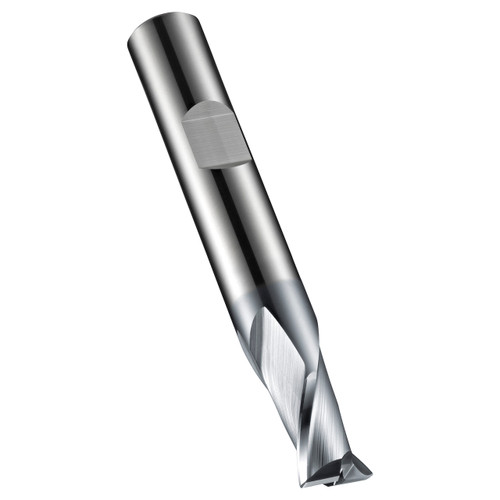

Dormer S802HB3.5 | 0.1378" Diameter x 1.9685" OAL 2 Flute AlCrN Coated Slot Drill

$45.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114397
Weight:
0.71 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Part of Dormer's extensive carbide milling cutter range, S802HB 2-flute slot drills, with a DIN6535HB shank, have a very accurate diameter, suitable for milling standard keyway slots to a P9 tolerance, and a short length flute for rigidity when milling shallow slots. They are very versatile and can be used for plunging, ramping and profile milling in a number of different materials, including steels, stainless steels, cast iron and non-ferrous materials. S802HB 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating. Together they will give you extended tool life and superior performance, particularly when milling materials which are difficult to machine.


Product Specifications
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1378"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.08mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
