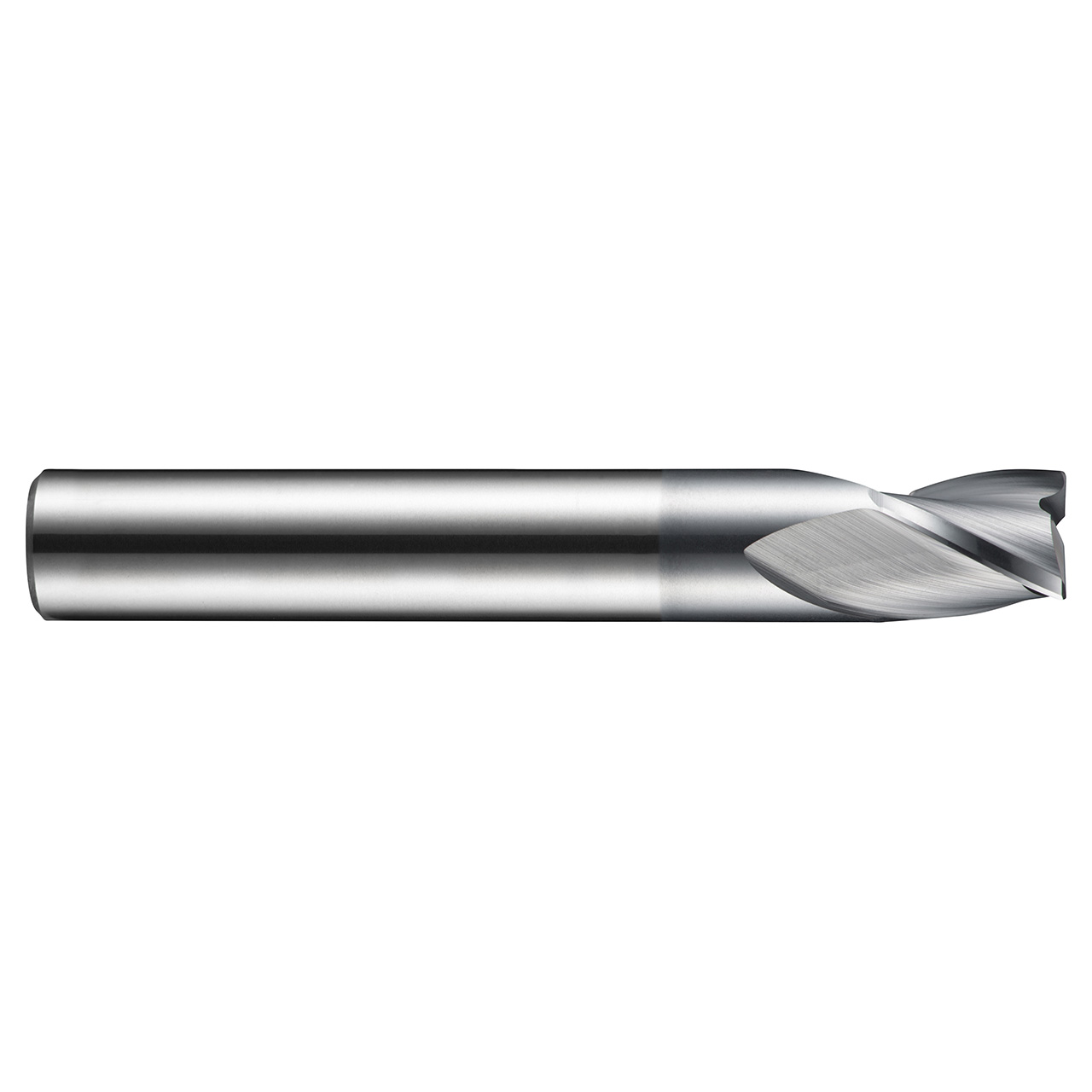

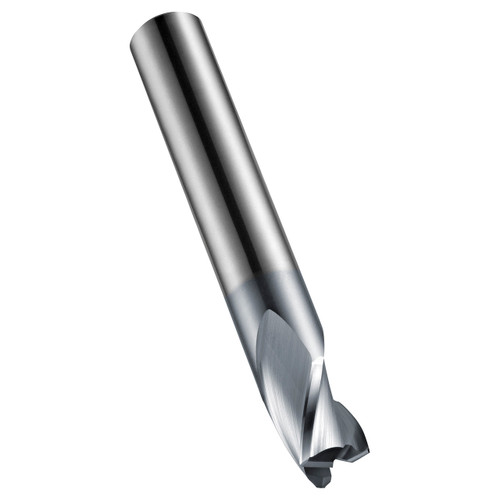

Dormer S803HA12.0 | 0.4724" Diameter x 2.874" OAL 3 Flute AlCrN Coated Slot Drill

$111.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114428
Weight:
4.06 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S803HA 3-flute milling cutters are suitable for machining stainless steels, cast iron, steels and non-ferrous materials and can be used for plunging, ramping and profile milling, making them a very versatile choice. They are manufactured from premium carbide for longer tool life and superior performance, and have an Alcrona coating which further increases tool life and gives improved performance when milling difficult to machine materials. Capable of milling standard keyway slots to P9 tolerance, S803HA cutters have a short flute for extra rigidity when milling shallow slots.


Product Specifications
Max Depth of Cut (mm)12mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)2.874"
Material CodeHM
Radial Rake Angle9
No of Flute3
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
