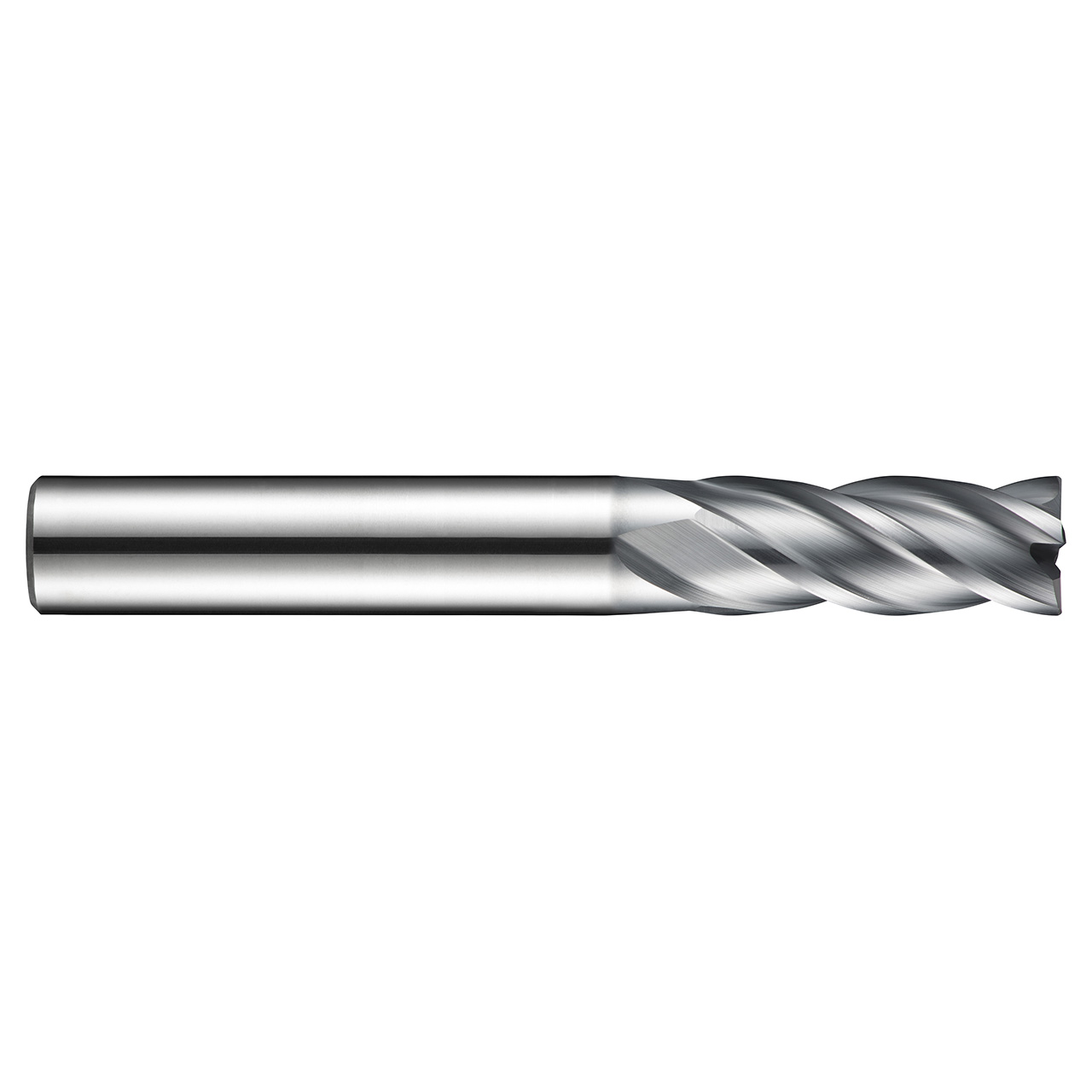

S814HA 4-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life. The medium length flute gives good rigidity for general purpose profile milling applications, whilst the cutters are of a strong design and can be used for both slotting and profile milling. The Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improve tool life. S814HA 4-flute end mills are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels, non-ferrous material and cast iron.
Max Depth of Cut (mm) | 13mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1969" |
Overall Length (Inch) | 2.2441" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 4 |
Flute Helix Angle | 34 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.13mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
