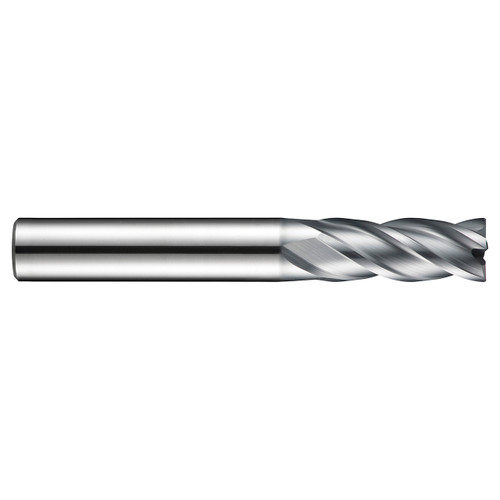

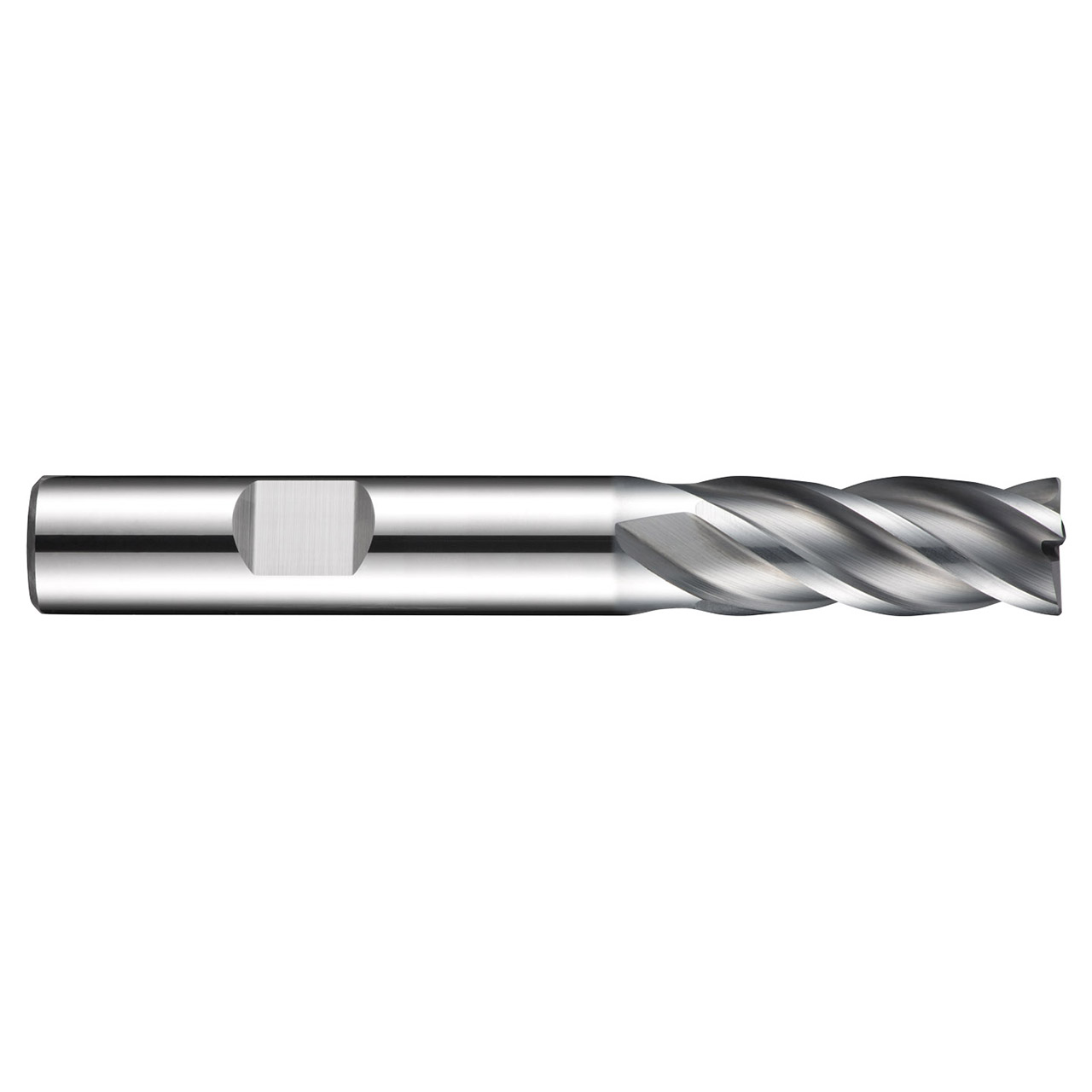

Dormer S814HB5.0 | 0.1969" Diameter x 2.2441" OAL 4 Flute AlCrN Coated Square End Mill

$51.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114562
Weight:
0.89 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

One of Dormer's extensive range of carbide milling cutters, S814HB 4-flute cutters can be used for both slotting and profile milling, whilst the high rigidity from the medium length flute design makes the tools suitable for general purpose profile milling applications. The special Alcrona coating coupled with the premium carbide material used in manufacture will give superior performance, especially when milling difficult to machine materials and also greatly improve tool life. S814HB 4-flute end mills are suitable for plunging, ramping and profile milling in a wide variety of materials including stainless steels, cast iron, non-ferrous materials and steels.


Product Specifications
Max Depth of Cut (mm)13mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.2441"
Material CodeHM
Radial Rake Angle9
No of Flute4
Flute Helix Angle34
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
