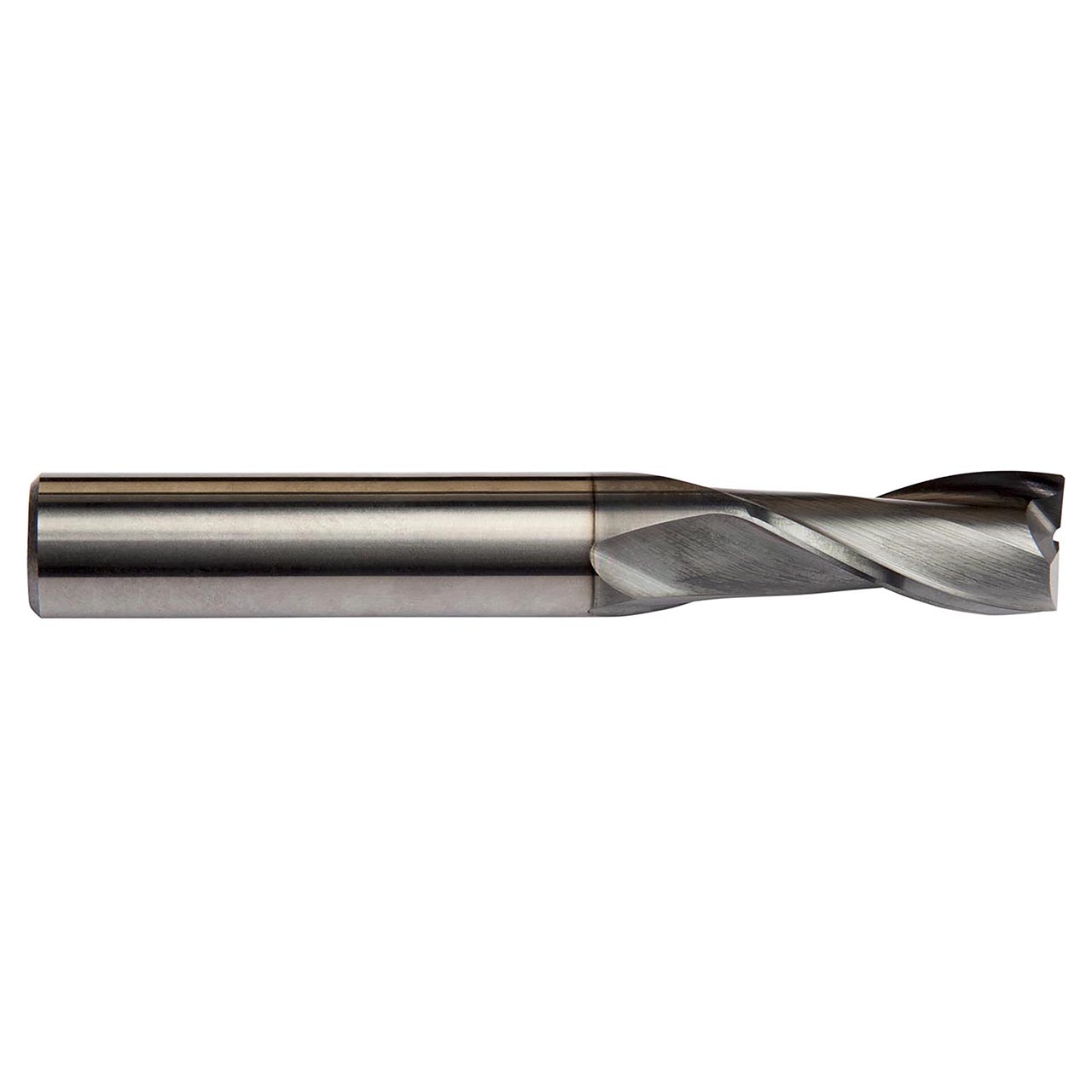

Dormer S8225.0 | 0.1969" Diameter x 2.2441" OAL 2 Flute AlCrN Coated Slot Drill

$46.08
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141397
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S822 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating. These two features greatly improve tool life and provide superior performance, particularly when milling difficult to machine materials. With an accurate diameter and longer length flute, the tools are very rigid and can be used to mill standard keyway slots to a P9 tolerance. S822 2-flute end mills are very versatile and suitable for milling steels, stainless steels, cast iron and non-ferrous materials and can be used for plunging, ramping and profile milling.


Product Specifications
Max Depth of Cut (mm)16mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.2441"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
