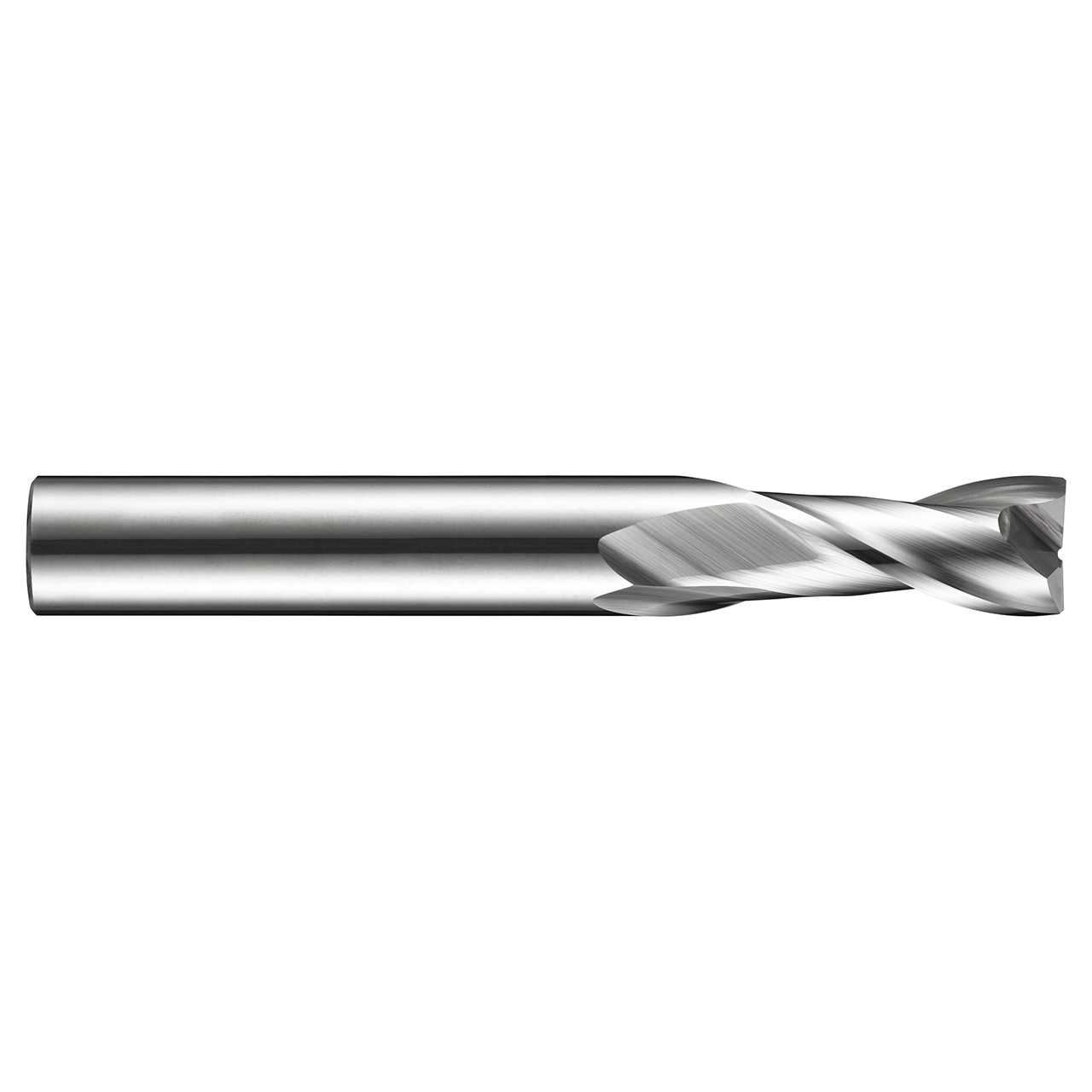

Dormer's S902 2-flute milling cutters have a medium length flute design making them very rigid and great for milling standard slots. The tools are manufactured from premium carbide for great performance and longer tool life and the bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get a cleaner, more accurate result. S902 2-flute slot drills are very versatile, being suitable for plunging, ramping and profile milling in steels, cast iron and stainless steels, and are a very economical range for general milling of slots on most types of machine.
Max Depth of Cut (mm) | 30mm |
Connection Diameter (Inch) | 0.5512" |
Cutting Diameter (Inch) | 0.5512" |
Overall Length (Inch) | 3.2677" |
Material Code | HM |
Radial Rake Angle | 12 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.2mm |
Coating | Bright |
Surface Color | Bright Silver |
