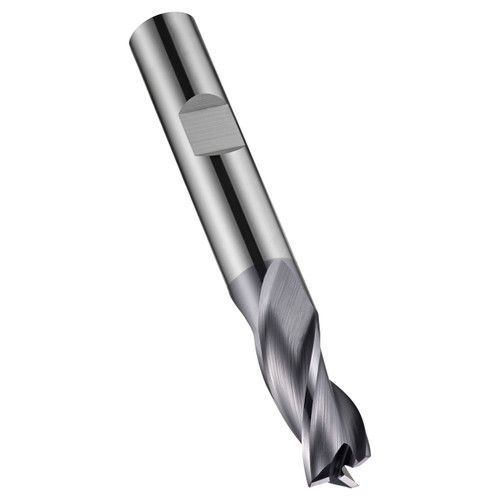

Part of Dormer's great range of carbide milling cutters, S933 3-flute cutters are a good economical choice for general milling of slots on most types of machine and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron. With a medium length flute design, the extra rigidity provided makes them great for milling standard slots and profiling. S933 3-flute slot drills are manufactured from premium carbide for superior performance and longer tool life, whilst the titanium aluminium nitride coating further increases tool life and improves performance when milling materials which are difficult to machine.
Max Depth of Cut (mm) | 22mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 2.8346" |
Material Code | HM |
Radial Rake Angle | 12 |
No of Flute | 3 |
Flute Helix Angle | 30 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.2mm |
Coating | TiAlN |
Surface Color | Black-Deep Purple |
