Product Specifications
| Manufacturer Part Number | 10685S |
| Length of Cut Minimum (Inch) | 11/16" |
| Length of Cut Minimum (mm) | 17.50mm |
| Length of Cut Maximum (Inch) | 4" |
| Length of Cut Maximum (mm) | 102.00mm |
| Cutting Width (Inch) | 0.9853" |
| Minimum Hole Size (Inch) | 2.2050" |
| Minimum Hole Size (mm) | 1.2490" |
| Body Width (Inch) | 1.2490" |
| Body Width (mm) | 31.72mm |
| Overall Length (Inch) | 63" |
| Overall Length (mm) | 1600mm |
| Body Height (Inch) | 1.75" |
| Body Height (mm) | 44.4mm |
| Shank Length (Inch) | 10-5/8" |
| Shank Length (mm) | 270mm |
| Functional Height (Inch) | 0.294" |
| Thread Size | 1-1/2"-6 |

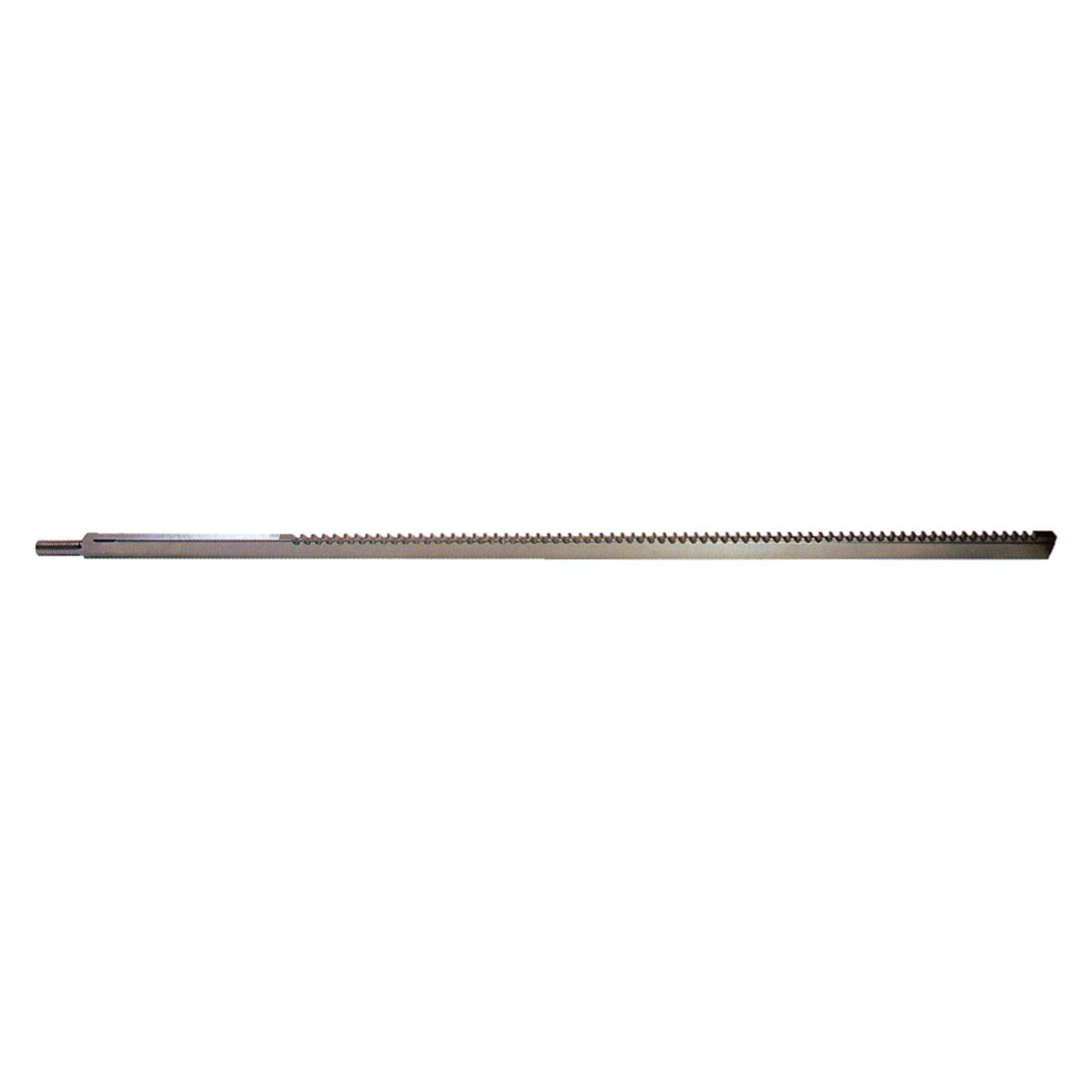

| Product Type | Pull-Type Keyway Broach |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
duMONT
