Product Specifications
| EDP Number | 99630 |
| Tool Holder Size | 19/27-32 |
| Centering Plate | CP-3 |
| Mounting Screw | MS-3 |
| Cutting Width (mm) | 86.0mm |
| Overall Length (mm) | 195.0mm |
| Insert Width (mm) | 9.0mm |
| Insert Thickness (mm) | 100.0mm |
| Shank Diameter 1 (mm) | 32mm |
| Shank Diameter 2 (mm) | 18.5mm |
| Body Diameter (mm) | 38mm |
| Torx Driver | T20 |
| Minimum Hole (mm) | 19mm |

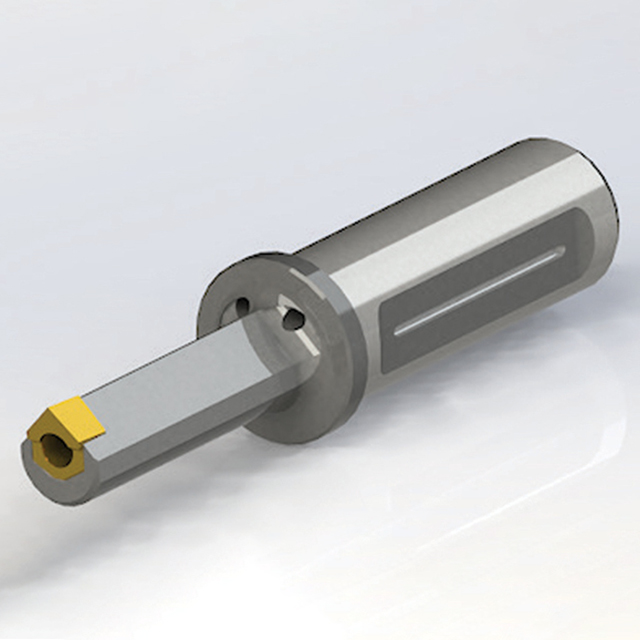

| Product Type | Indexable Broaching Toolholder |
