Product Specifications
| EDP Number | 99631 |
| Tool Holder Size | 27/37-25 |
| Centering Plate | CP-4 |
| Mounting Screw | MS-3 |
| Cutting Width (mm) | 100.0mm |
| Overall Length (mm) | 199.0mm |
| Insert Width (mm) | 9.0mm |
| Insert Thickness (mm) | 90.0mm |
| Shank Diameter 1 (mm) | 25mm |
| Shank Diameter 2 (mm) | 25mm |
| Body Diameter (mm) | 30mm |
| Torx Driver | T20 |
| Minimum Hole (mm) | 27mm |

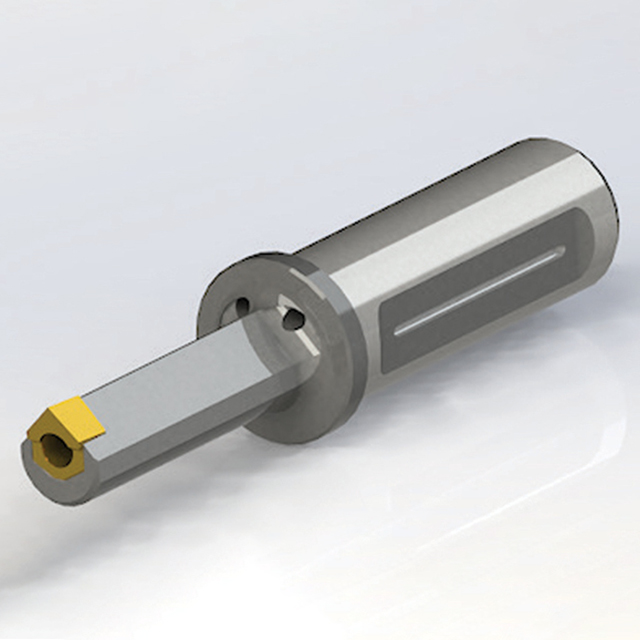

| Product Type | Indexable Broaching Toolholder |
