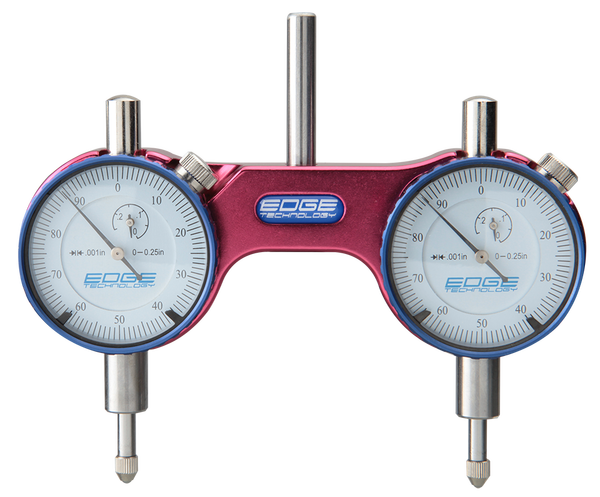

The Mini Pro Tram by Edge Technology has all the same great features of the full size Pro Tram but in a smaller package. The unit is perfectly sized for bench top and mini-mill machines.
Features
- Square the head of a milling machine quickly and easily
- To use the Mini Pro Tram simply lower unit to the table and adjust the head until both indicators read the same
- Guaranteed to be equal to or better than any other tramming method or spindle squaring device available
- Sized perfectly to fit smaller table top milling machines or cnc routers
- Can be used with a sine bar or sine plate to adjust the head to precise angles
- Calibration procedure accounts for any error introduced by worn collets
- Indicator graduations 0.001"
- 1/4" shank size
- Indicator repeatability of 0.0002”
- Body made from red anodized aluminum
- Includes calibration gage, manual and padded case
Product Specifications
| Weight | 2.1875 lbs |
| Brand | Edge Technology |
| Dial Reading | 0-100 |
| Resolution | 0.001" |
| Indicator Range | 0 ~ 1/4" |
| Model # | 11-000 |
| Indicator Graduation | 0.001" |
| Repeatability | .0002" |
| Capacity | 1/4" |
| Shank Diameter | 1/4" |
| Type of Reading | .001" |
| Country of Origin | Import |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Edge Technology
Maximum Measurement:
1/4"
Dial Graduation (Decimal Inch):
0.001"
Dial Reading:
0-102
