Features:

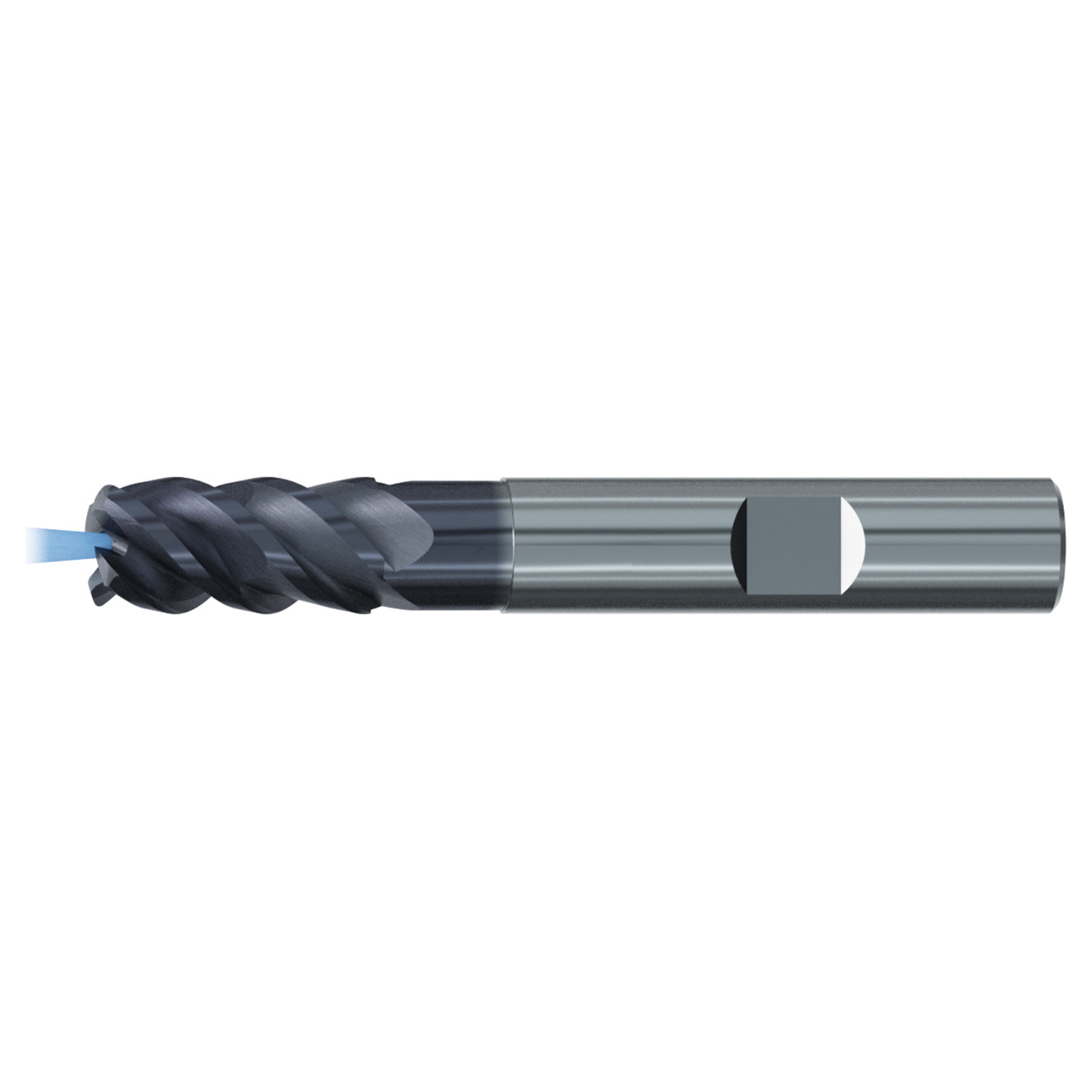

- Jet-Cut carbide end mill in long design for roughing under unstable conditions in almost all materials
- Duplex geometry combines HPC and HFC geometry, enabling 2D and 3D machining with a single tool
- Axial coolant hole for enhanced chip evacuation
- TIALN coated for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 2611AZ.006 |
| Cutting Diameter (Decimal Inch) | 0.236" |
| Cutting Diameter (mm) | 6.00mm |
| Corner Radius (mm) | 0.80mm |
| Overall Length (mm) | 57.00mm |
| Flute Length (mm) | 13.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Regular |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 50 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | TORUS |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
15/64"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
Number of Flutes:
4
Corner Radius (Decimal Inch):
0.0314"
Corner Radius (mm):
0.80mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2440"
Overall Length (mm):
57.00mm
Finish/Coating:
TiAlN
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Application:
Finishing
