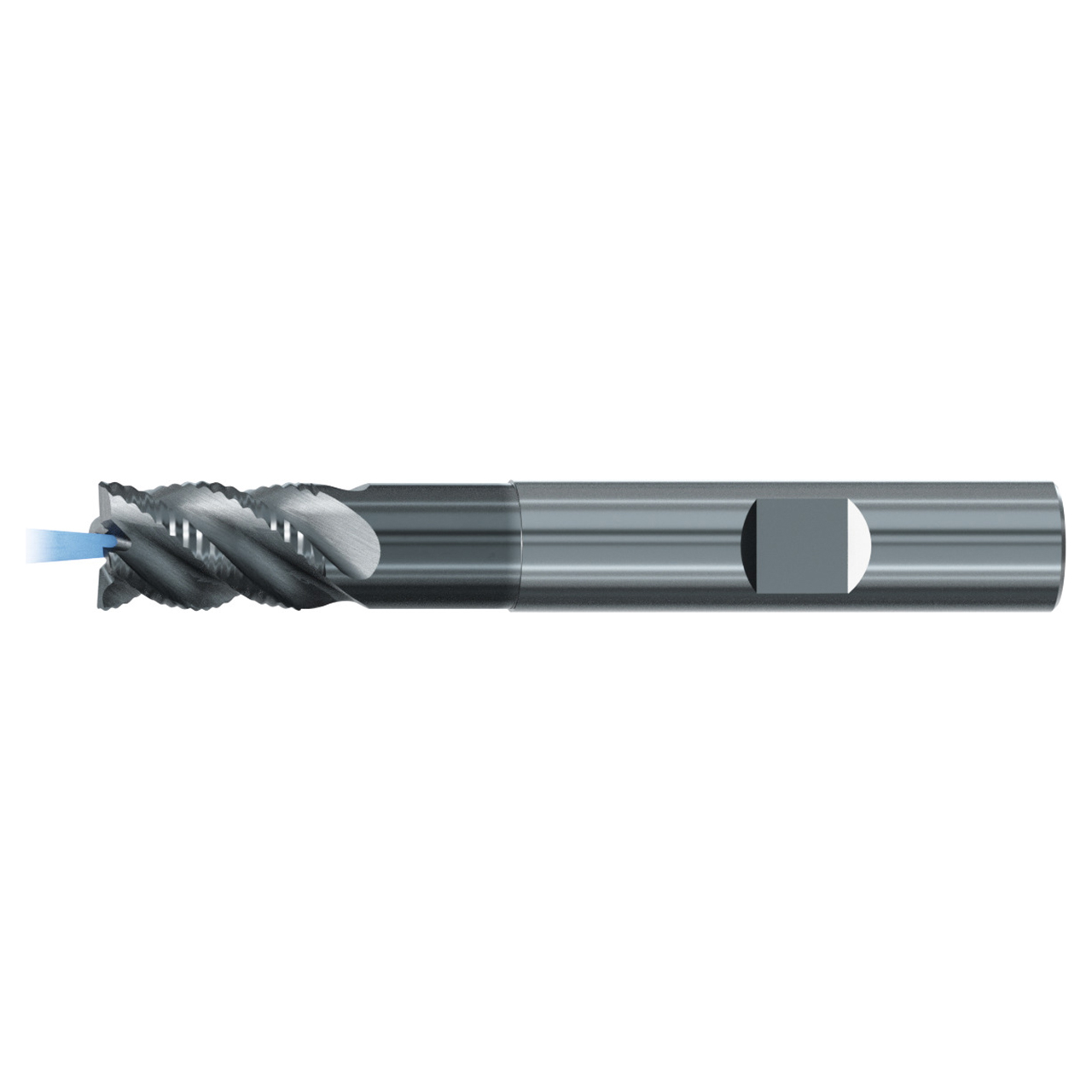

Features:
- Multi-Cut carbide end mill for high-performance roughing in many materials
- Very low cutting forces and vibrations due to variable spacing and NR rougher cutting profile
- Excellent for roughing under unstable conditions
- Optimally suited for high metal removal rates
Product Specifications
| Manufacturer Part Number | 2869LZ.0500 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Overall Length (Inch) | 3-1/4" |
| Flute-Length (Inch) | 3/4" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Regular |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Rougher |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Finish/Coating:
ALCR
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (Inch):
1/2"
Shank Diameter (mm):
12.70mm
Overall Length (Decimal Inch):
3.2500"
Overall Length (Inch):
3 1/4"
Overall Length (mm):
82.55mm
interval quantity:
1
