Features:

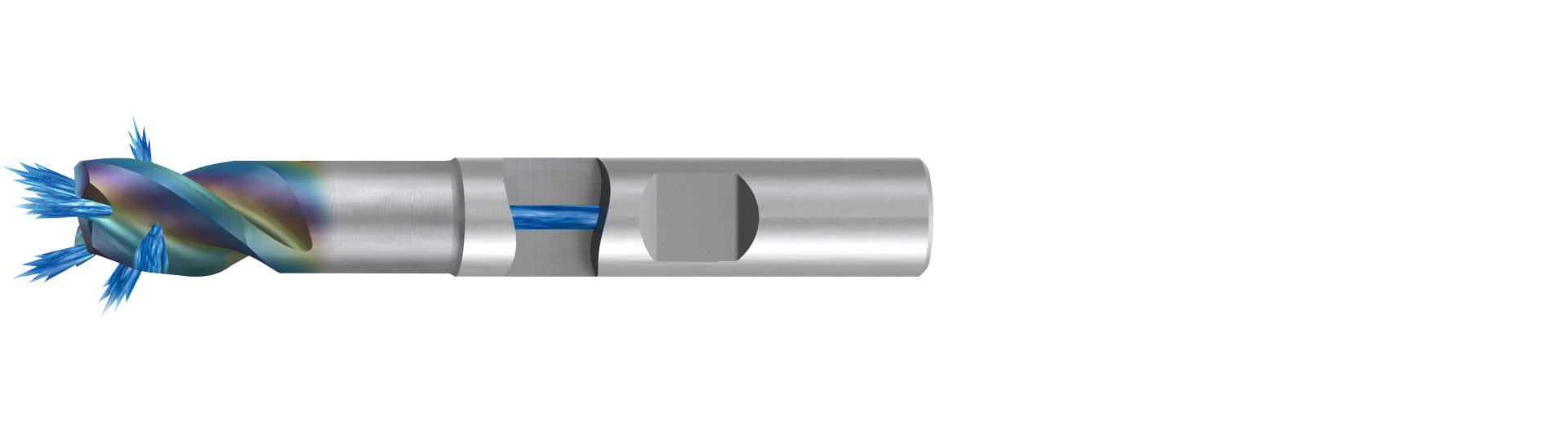

- Special geometry for machining of aluminum. Coolant fed both axial & radial exits. Premium sub-micro grain carbide
- Longer tool life with increased performance in aluminum milling applications
Product Specifications
| Chamfer Form | |
| Size | 8 mm |
| Applicable Material | Aluminum Alloys |
| Application | Finisher |
| Type | Square End |
| Length Group | Regular |
| Coolant Fed | Radial & Axial |
| Coating/Finish | CrN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 40 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h5 |
| Shank Style | HB |
| Overall Length (mm) | 63 mm |
| Flute Length (mm) | 10 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
