Features:

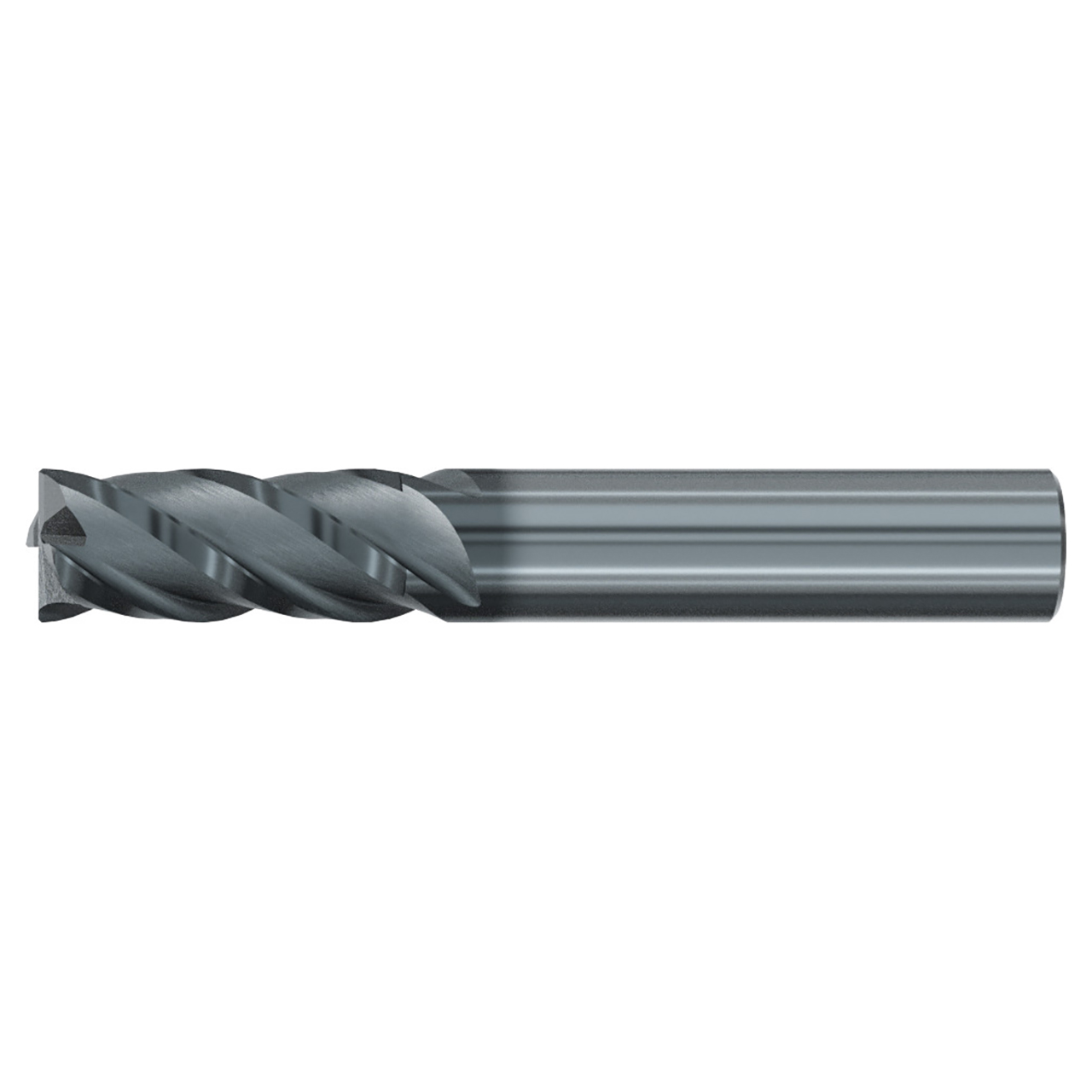

- TOP-Cut VAR carbide end mill 4 flute design for roughing and finishing in almost all materials
- Special tool geometry enable low-vibration machining and universal use in almost all materials and milling processes
- Wear resistant sub-micro grain carbide substrate
- ALCR coating for longer tool life and very good suitability for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 2994L.A000 |
| Cutting Diameter (Inch) | 1" |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Overall Length (Inch) | 4" |
| Flute-Length (Inch) | 1" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 38-42 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
4
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
ALCR
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Application:
Finishing
