Features:

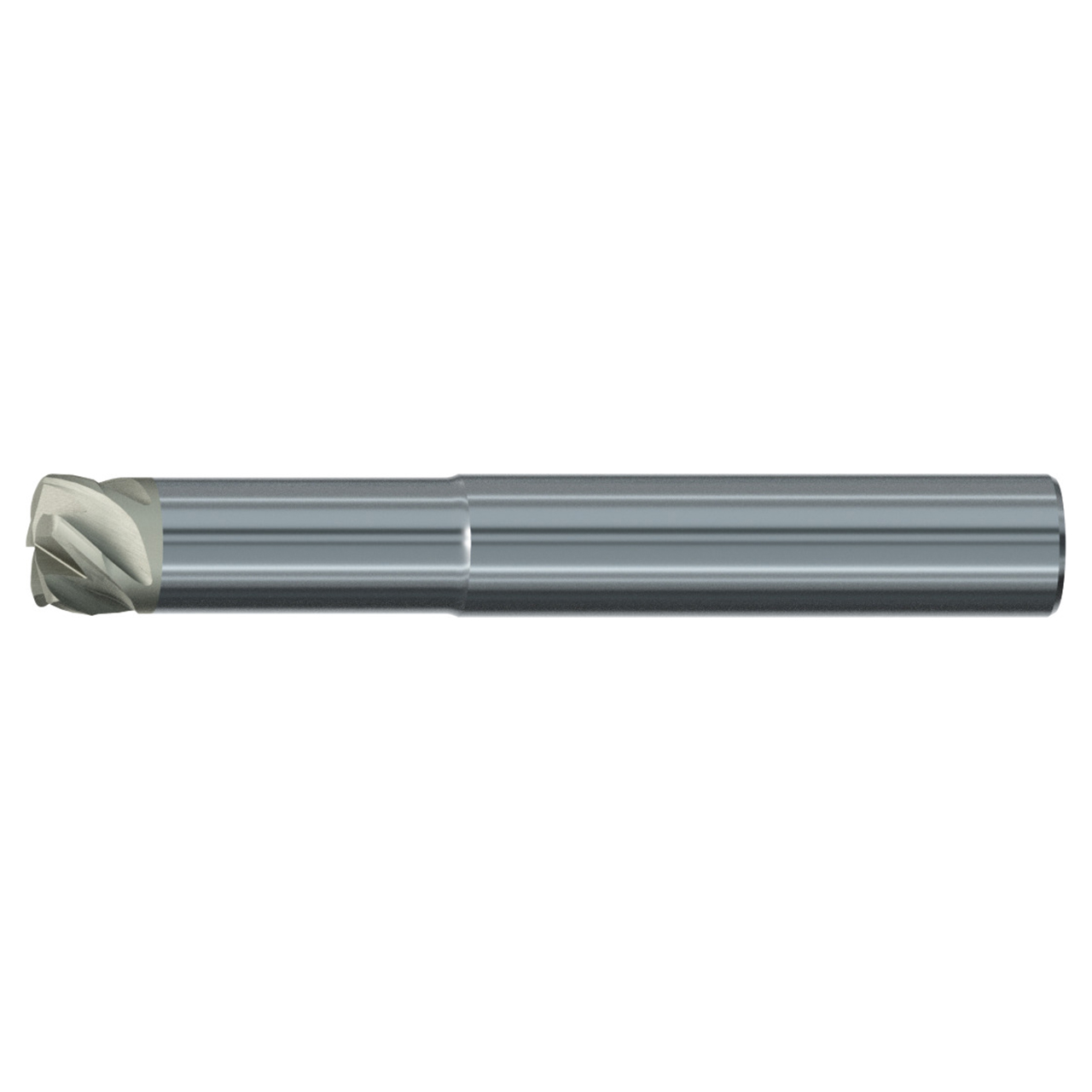

- End mill with ceramic cutting edge for roughing and pre-finishing in difficult-to-machine or hardened materials
- Ceramic brazed headed tool for high speed milling
- Suitable for high feed machining (HFC) with face cutting edge
- Ceramic end mills cut at 200 to 400% faster rates than carbide tools
Product Specifications
| Manufacturer Part Number | 3818.012 |
| Cutting Diameter (Decimal Inch) | 0.472" |
| Cutting Diameter (mm) | 12.00mm |
| Corner Radius (mm) | 5.90mm |
| Overall Length (mm) | 83.00mm |
| Flute Length (mm) | 4.00mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Connection Diameter Machine Side | HSK-A100 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 40 Degree |
| Cutting Edge Material | Ceramic |
| Coating | Bright |
| Tool Type | Ceramic End Mill |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Roughing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
15/32"
Mill Diameter (Decimal Inch):
0.4724"
Mill Diameter (mm):
12.00mm
Number of Flutes:
5
Corner Radius (Inch):
15/64"
Corner Radius (Decimal Inch):
0.2322"
Corner Radius (mm):
5.90mm
Overall Length (Inch):
3-17/64"
Overall Length (Decimal Inch):
3.2677"
Overall Length (mm):
83.00mm
Finish/Coating:
Bright
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Application:
Roughing
interval quantity:
1
