Features:

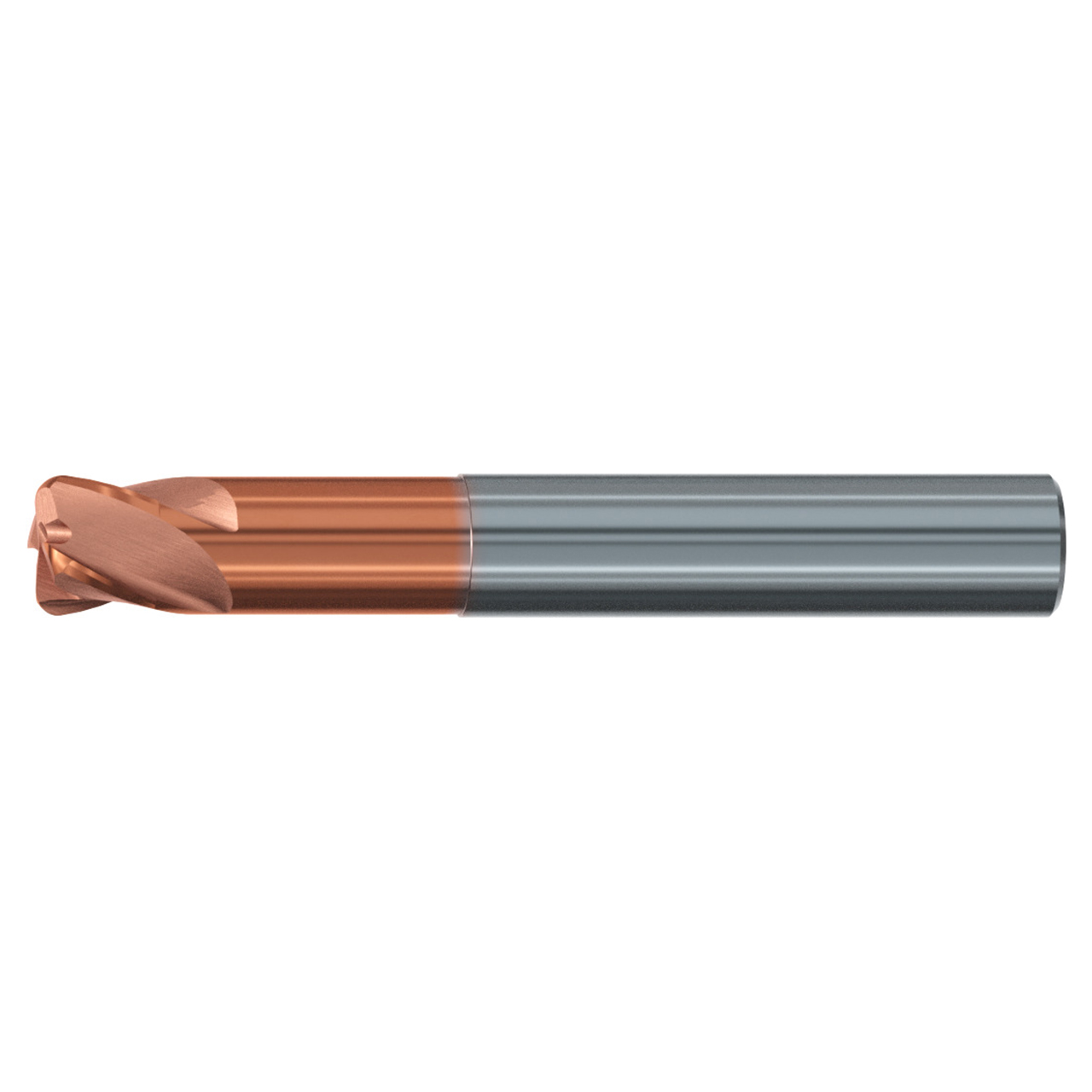

- TOP-Cut carbide torus nose end mill for roughing and finishing in almost all materials
- Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy
- For universal use, suitable for high speed machining finishing
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3835A.008010 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Corner Radius (mm) | 1.00mm |
| Overall Length (mm) | 63.00mm |
| Flute Length (mm) | 7.00mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Stub Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Torus |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | TORUS |
| Application | Finishing |
| Product Type | Torus End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
4
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0393"
Corner Radius (mm):
1.00mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Finish/Coating:
TiAlN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3149"
Shank Diameter (mm):
8.00mm
Application:
Finishing
