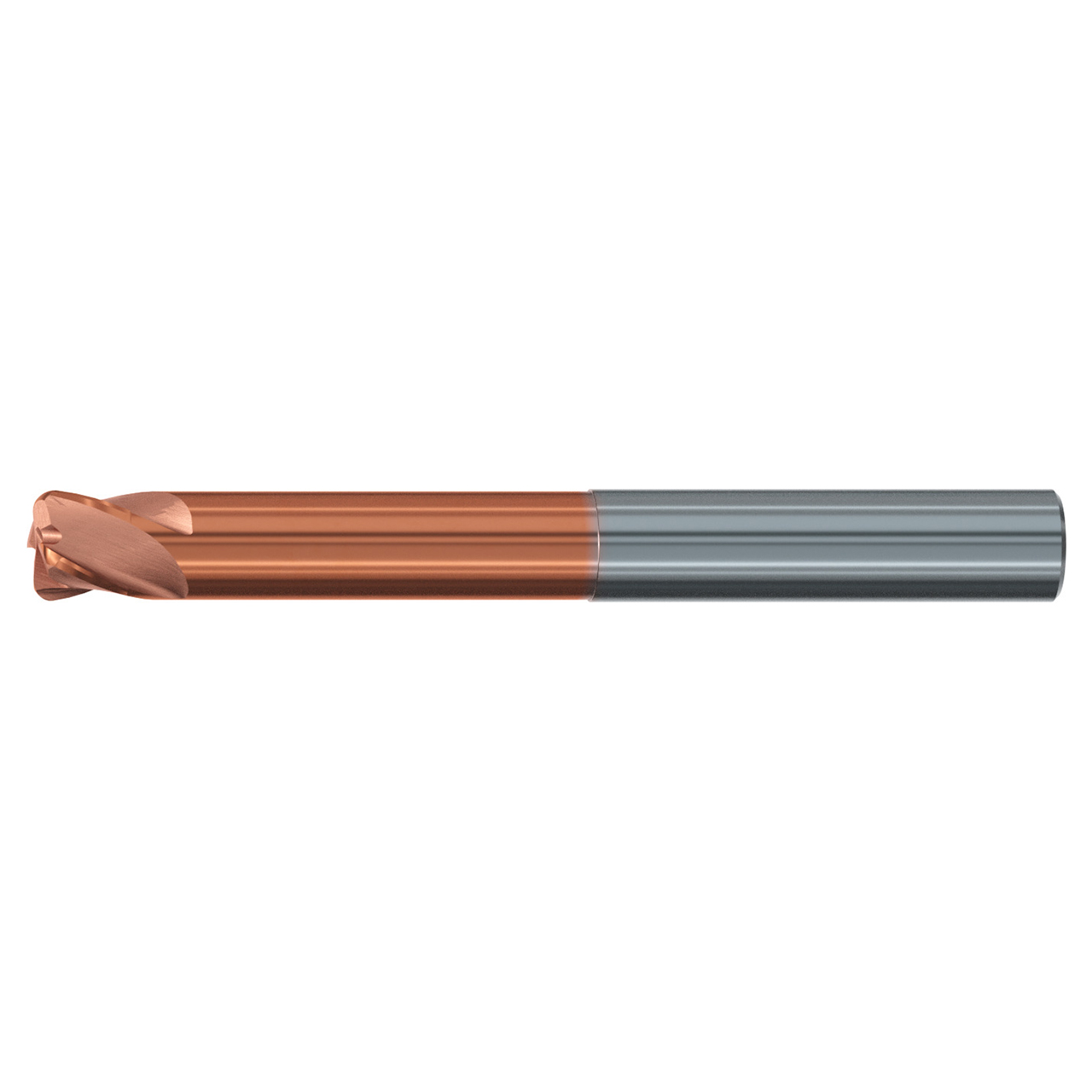

Emuge 3836A.005003 | 5.00mm Diameter x 66.00mm OAL 4 Flute TIALN Coated Torus End Mill

$144.63 $94.01
(You save $50.62)
Brand:
Emuge
Mill Diameter (Inch):
13/64"
Mill Diameter (Decimal Inch):
0.1969"
Mill Diameter (mm):
5.00mm
Number of Flutes:
4
Corner Radius (Decimal Inch):
0.0118"
Corner Radius (mm):
0.30mm
Overall Length (Inch):
2-19/32"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66.00mm
Finish/Coating:
TiAlN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Application:
Finishing
interval quantity:
1
SKU:
25235792
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge 3836A.005003 | 5.00mm Diameter x 66.00mm OAL 4 Flute TIALN Coated Torus End Mill

Related Products

Features:

  • TOP-Cut carbide torus nose end mill for roughing and finishing in almost all materials
  • Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy
  • For universal use, suitable for high speed machining finishing
  • TIALN coated for heat and wear resistance

Product Specifications
Manufacturer Part Number3836A.005003
Cutting Diameter (Decimal Inch)0.197"
Cutting Diameter (mm)5.00mm
Corner Radius (mm)0.30mm
Overall Length (mm)66.00mm
Flute Length (mm)5.00mm
Shank Toleranceh5
Tool Cylindrical - Shank StyleCylindrical - HA
Shank StandardDIN 6535
Flute DirectionRight Hand
Group LengthLong Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute4
Flute Helix Angle (Degree)30 Degree
Cutting Edge MaterialCarbide
CoatingTIALN
Tool TypeTorus
End Mill - End StyleSquare & Corner Radius End Mills
End ShapeTORUS
ApplicationFinishing
Product TypeTorus End Mill
