Features:

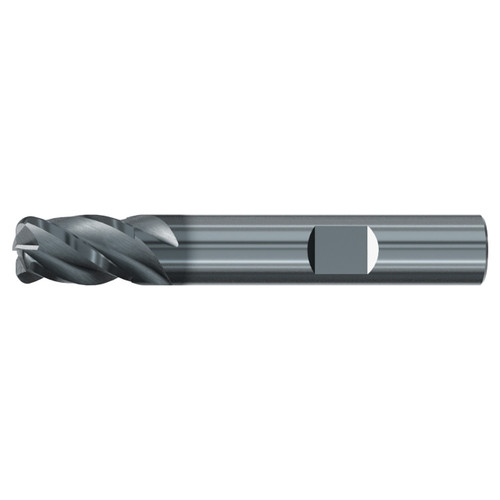

- TOP-Cut VAR carbide end mill with 4 flute design for roughing and finishing in almost all materials
- Variable helix geometry results in higher quality parts by decreasing chatter and harmonics
- Corner radius profile end mill designed to extend tool life in stainless steels, high temp alloys, and hardened steel
- ALCR coating for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3946L.031015 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Corner Radius (Decimal Inch) | 0.015" |
| Overall Length (Inch) | 2-1/4" |
| Flute-Length (Inch) | 9-16" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
4
Corner Radius (Decimal Inch):
0.015"
Corner Radius (mm):
0.38mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2500"
Overall Length (mm):
57.15mm
Finish/Coating:
ALCR
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Application:
Finishing
