Features:

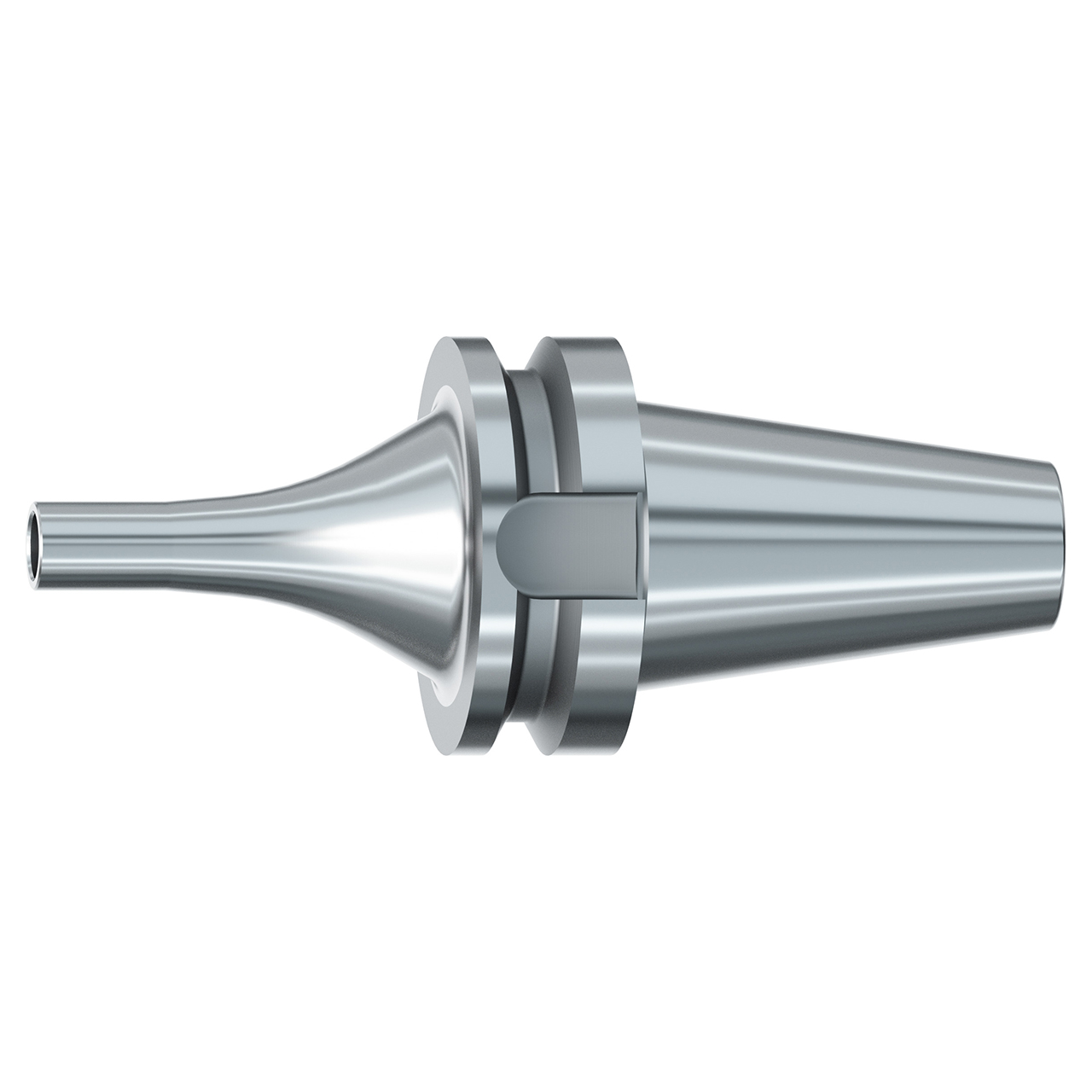

- Micro version of the FPC tool holder system
- Patented design delivers 3 tons of traction force Simple design is highly accurate
- Slim line design for additional reach capabilities
- Designed for tool shanks from 1mm to 6 mm Slim design is well suited to 5-axis machining
Product Specifications
| Manufacturer Part Number | 6393.400612 |
| Connection Diameter Workpiece Side (mm) | 1-6mm |
| Nose Diameter (mm) | 13.50mm |
| Projection Length (mm) | 120.00mm |
| Dimensional Standards | ISO 7388-2 |
| Connection Diameter Machine Side | CAT40 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |
| Product Type | Collet Chuck Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
