Features:

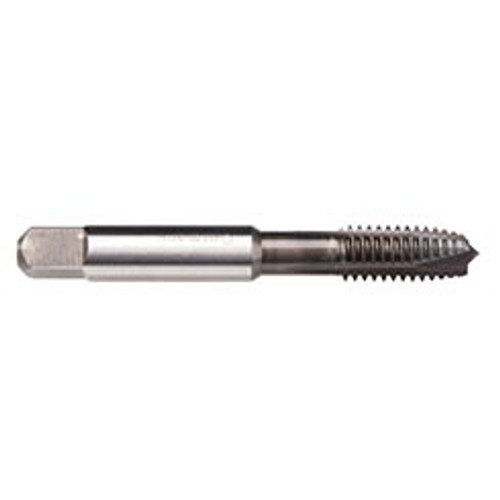

- Rekord B-VA design is for through hole applications in stainless steel and steel alloys
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Pitch | 24 |
| Size | 10 |
| Thread Limit | 2B |
| Thread Standard | UNC |
| Applicable Material | Alloyed Steel & Stainless Steel |
| Application | Through Hole |
| Coolant Fed | No |
| Coating | NT |
| Material | HSSE |
| Type | Rekord B-VA |
| Length Group | ANSI Length |
| Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.194" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.374" |
| Thread Length (mm) | 0.591" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
10-24
Thread Limit:
2B
Number of Flutes:
3
Thread Standard:
UNC
Chamfer:
4 -5 P
Finish/Coating:
No
Material:
HSSE
Cutting Direction:
Right Hand
interval quantity:
