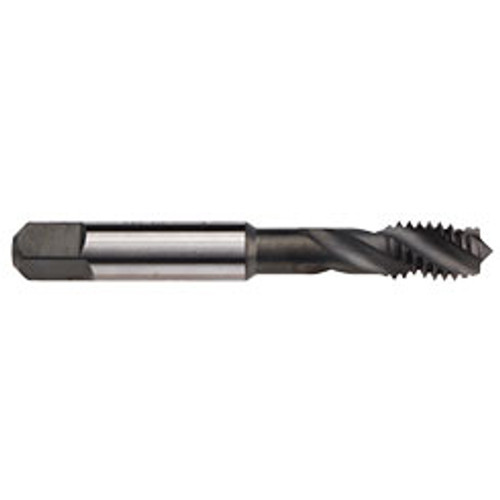

Emuge AU503210.5041 | #10-32 -Tap- EnorMVA -3B-ANSI

$40.79 $37.77
(You save $3.02)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
10-32
Thread Limit:
3B
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NE2
Flute Direction:
Right Hand
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3740"
Overall Length (mm):
60.3mm
SKU:
15043261
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • The Enorm VA design is typically for blind hole threads in long chipping materials. The fast spiral flute (35 Degree) provides good chip removal from blind holes
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch32
Size10
Thread Limit3B
Thread StandardUNF
Applicable MaterialAlloyed Steel & Long Chipping Materials
ApplicationBlind Hole
Coolant FedNo
CoatingNE2
MaterialHSSE
TypeEnorm VA
Length GroupANSI Length
Flutes3
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.194"
Dimension StandardsANSI/ANSI
Shank Toleranceh9
Overall Length (mm)2.374"
Thread Length (mm)0.591"
Flute DirectionRight Hand
