Features:

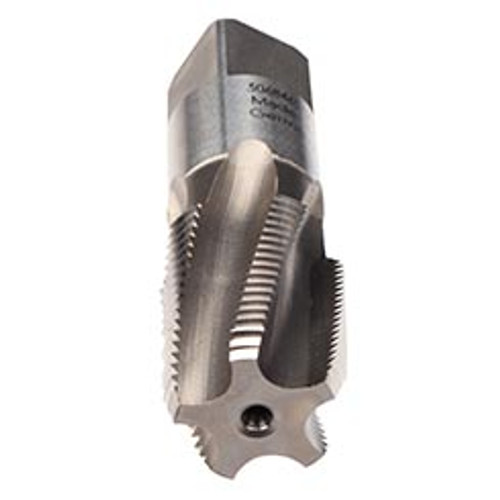

- Rekord KEG D-VA slow spiral style is best suited for stainless steel and steel materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 11-1/2 |
| Size | 1-1/2" |
| Thread Standard | NPTF |
| Applicable Material | Stainless Steel & Steel Alloys |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord KEG-VA |
| Length Group | ANSI Length |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 1.500" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 4.252" |
| Thread Length (mm) | 1.75" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1-1/2"-11-1/2
Thread Standard:
NPTF
Material:
HSSE
Finish/Coating:
Bright
Number of Flutes:
5
Overall Length (Inch):
4-1/4"
Overall Length (Decimal Inch):
4.2520"
Overall Length (mm):
108mm
Chamfer:
2 -3 P
Cutting Direction:
Right Hand
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.1mm
