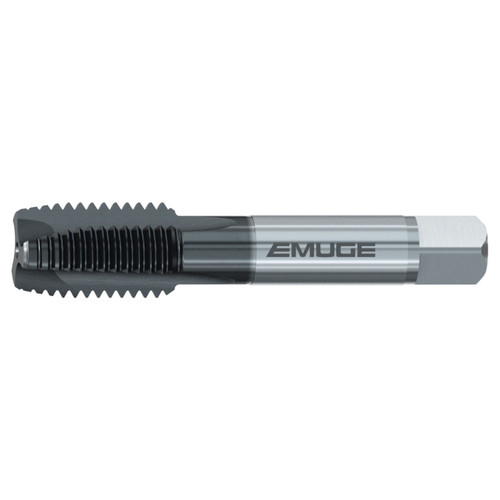

Emuge AX321008.5045 | 3/8"-24 Thread Size x 0.709" Thread Length 4 Flute GLT-1 Coated Straight Flute Tap

$55.35 $54.24
(You save $1.11)
Brand:
Emuge
Overall Length (Inch):
2-15/16"
Overall Length (Decimal Inch):
2.9380"
Overall Length (mm):
74.63mm
Number of Flutes:
4
interval quantity:
1
SKU:
15038102
UPC:
Weight:
0.10 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge AX321008.5045 | 3/8"-24 Thread Size x 0.709" Thread Length 4 Flute GLT-1 Coated Straight Flute Tap

Features:

  • Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications.
  • Longer tool life and more consistent thread quality
  • ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension

Product Specifications
Manufacturer Part NumberAX321008.5045
Thread Size3/8"-24
Thread Diameter Size3/8"
Thread Per Inch (TPI)24 TPI
Thread Length (Decimal Inch)0.709"
Neck Length (Decimal Inch)1.378"
Overall Length (Decimal Inch)2.938"
Length GroupANSI Length
Number of Flutes4
Dimensional StandardANSI/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNF
Thread Tolerance ClassH11
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-1
Product TypeStraight Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
