Features:

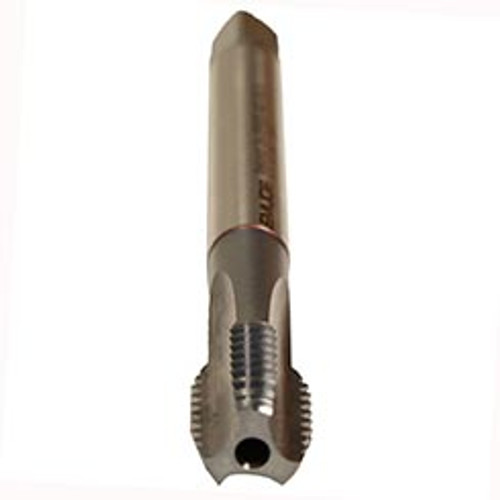

- Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 1.5 -2 P |
| Chamfer Form | E |
| Pitch | 1.25 |
| Size | M 8 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Short Chipping Cast Materials |
| Application | Through and Blind Hole |
| Coolant Fed | No |
| Coating/Finish | TiCN |
| Material | HSSE |
| Type | Rekord A-Z |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 12.5 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M8 X 1.25
Thread Limit:
6HX
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5434"
Overall Length (mm):
90mm
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TiCN
Thread Standard:
M
