Features:

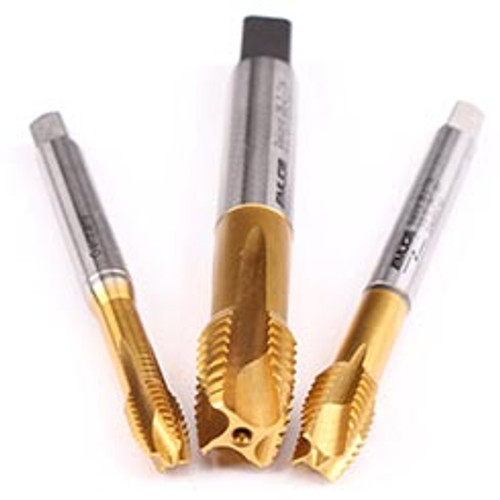

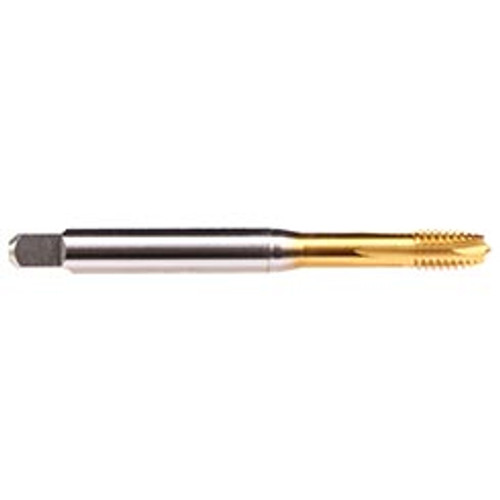

- Rekord B-Z design is typically for through hole applications in long-chipping materials. Spiral point creates tight curled chips that are pushed ahead of the tap
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Pitch | 0.7 |
| Size | M 4 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Steel Alloys and Long Chipping Materials |
| Application | Through Hole |
| Coolant Fed | No |
| Coating/Finish | TiN-70 |
| Material | HSSE-PM |
| Type | Rekord B-Z |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 4.5 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 63 mm |
| Thread Length (mm) | 7 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M4 X 0.7
Thread Limit:
6HX
Number of Flutes:
3
Thread Standard:
M
Chamfer:
4 -5 P
Finish/Coating:
No
Material:
HSSE-PM
Cutting Direction:
Right Hand
