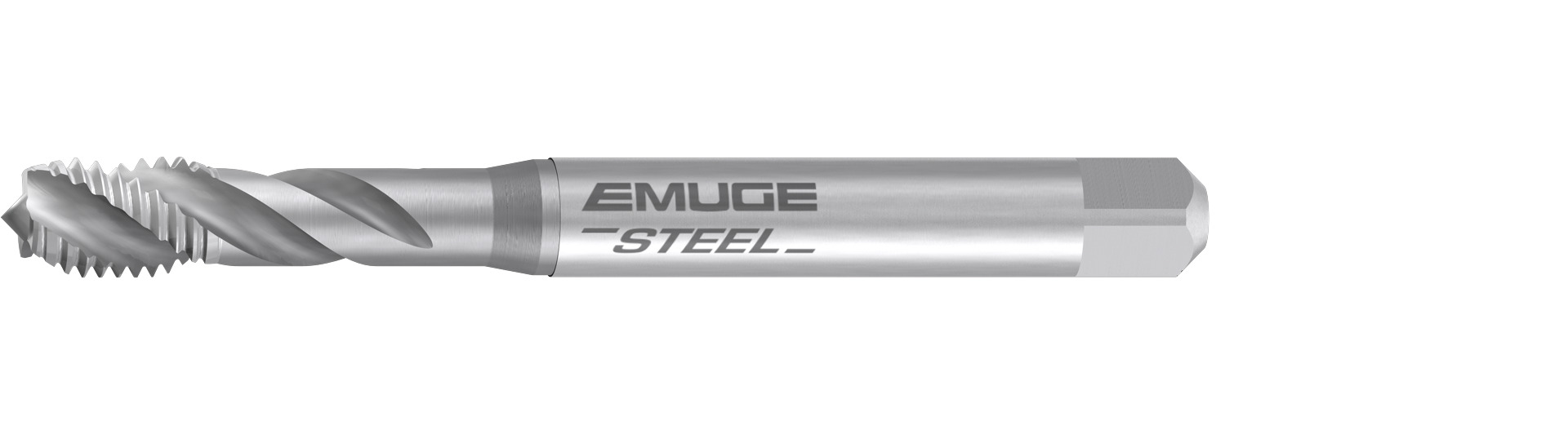

Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 0.5 |
| Size | M 4 x 0.5 |
| Thread Limit | ISO 2/6H |
| Thread Standard | M |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Shank Diameter (mm) | 4.5 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 63 mm |
| Flute Direction | Right Hand |
