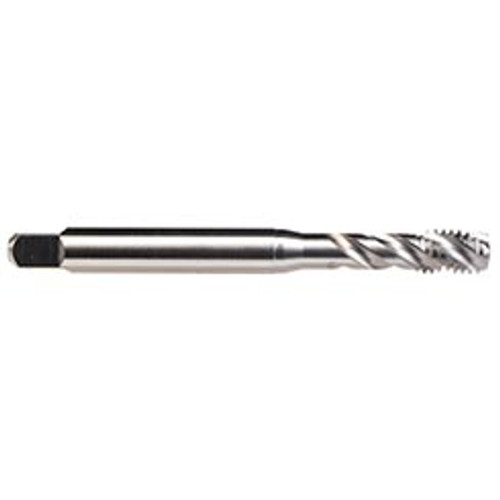

Emuge B0513500.0970 | STI-M5 - Tap - EnorMZ/E - ForME

$66.68 $65.34
(You save $1.34)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M5 X 0.8
Thread Limit:
6H mod
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
Bright
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80mm
Thread Standard:
STI-M
Thread Length (Inch):
33/64"
Thread Length (Decimal Inch):
0.5119"
Thread Length (mm):
13mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6mm
interval quantity:
1
SKU:
15040641
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
B0513500.0970-B

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M5 X 0.8
Thread Limit:
6H mod
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
Bright
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80mm
Thread Standard:
STI-M
Thread Length (Inch):
33/64"
Thread Length (Decimal Inch):
0.5119"
Thread Length (mm):
13mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6mm
interval quantity:
1
