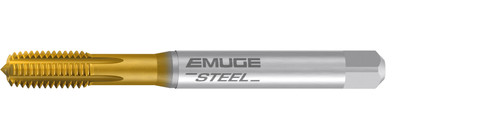

Emuge B0921400.1046 | LK-M 3-0.5 - Tap - Druck Roll Form - Lube Grooves-TIN

$135.96 $133.24
(You save $2.72)
Brand:
Emuge
Shank Diameter (mm):
3.50mm
Cutting Edge Material:
HSSE
Thread Size:
LK-M 3 x 0.5
Thread Standard:
LK-M
Flute Direction:
Straight
Finish/Coating:
TiN
Tool Type:
EMUGE STEEL
Class of Fit:
LK
Application:
Form Taps
Overall Length (mm):
56.00mm
interval quantity:
1
SKU:
15044377
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Chamfer2-3 P
Chamfer FormC
ClassLK
Pitch0.5
SizeLK-M 3-0.5
Thread LimitBT
Thread StandardLKM
Coolant FedNo
Coating/FinishTIN
MaterialHSSE
Shank Diameter (mm)3.5 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)56 mm
Flute DirectionStraight
