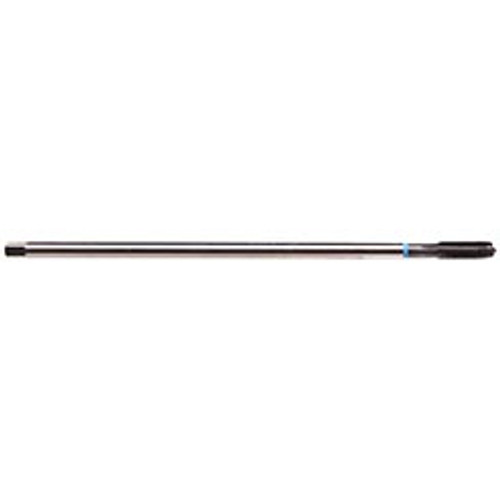

Emuge B2203000.0040 | M4- Tap - Rekord B-VA - Long Shank

$77.31
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M4 X 0.7
Thread Limit:
ISO 2/6H
Overall Length (Inch):
4-59/64"
Overall Length (Decimal Inch):
4.9213"
Overall Length (mm):
125mm
Number of Flutes:
3
Chamfer:
4 -5 P
Material:
HSSE
Finish/Coating:
NT
Thread Standard:
M
SKU:
15040805
Weight:
0.03 LBS
Shipping:
Free Shipping

Features:

  • Rekord B-VA LS design is for through & blind hole applications in stainless steel and steel materials
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer4 -5 P
Chamfer FormB
Pitch0.7
SizeM 4
Thread LimitISO 2/6H
Thread StandardM
Applicable MaterialAlloyed Steel & Stainless Steel
ApplicationThrough Hole
Coolant FedNo
Coating/FinishNT
MaterialHSSE
TypeRekord B-VA
Length GroupExtended Length
Number of Flutes3
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)4.5 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)125 mm
Thread Length (mm)13 mm
Flute DirectionStraight
