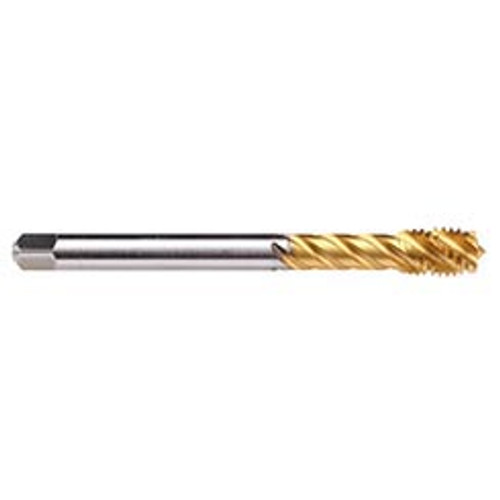

Features:
- Speed taps are able to operate at higher cutting speeds than conventional designs. Enorm style taps have a spiral flute design suitable for blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 1.25 |
| Size | M 8 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Alloyed Steel & Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | TiN-60 |
| Material | HSSE-PM |
| Type | Enorm |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 12.5 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M8 X 1.25
Thread Limit:
6HX
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE-PM
Finish/Coating:
TiN-60
Flute Direction:
Right Hand
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5434"
Overall Length (mm):
90mm
