Features:

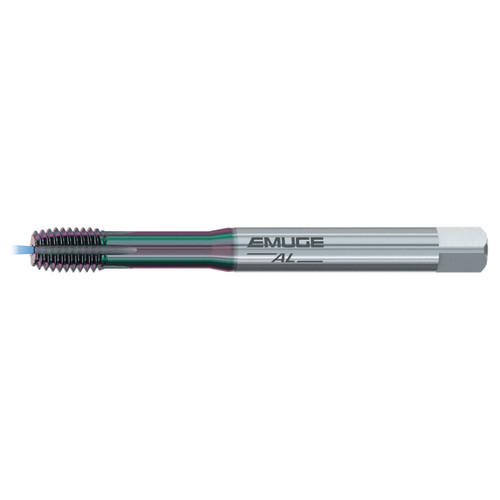

- The InnoForm AL roll form tap is designed for aluminum alloys.
- Short threaded part and special polygon shape for less torque
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B5211Q00.0100 |
| Thread Size | M 10x1.5 |
| Thread Diameter Size | M 10 |
| Square Size (mm) | 8.00mm |
| Thread Length (mm) | 16.00mm |
| Overall Length (mm) | 100.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Material Grade | HSSE-PM |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 10x1.5
Thread Diameter Size:
M 10
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Thread Length (Inch):
17/27"
Thread Length (Decimal Inch):
0.6299"
Thread Length (mm):
16.00mm
Material Grade:
HSSE-PM
Coating:
GLT-104
