Features:

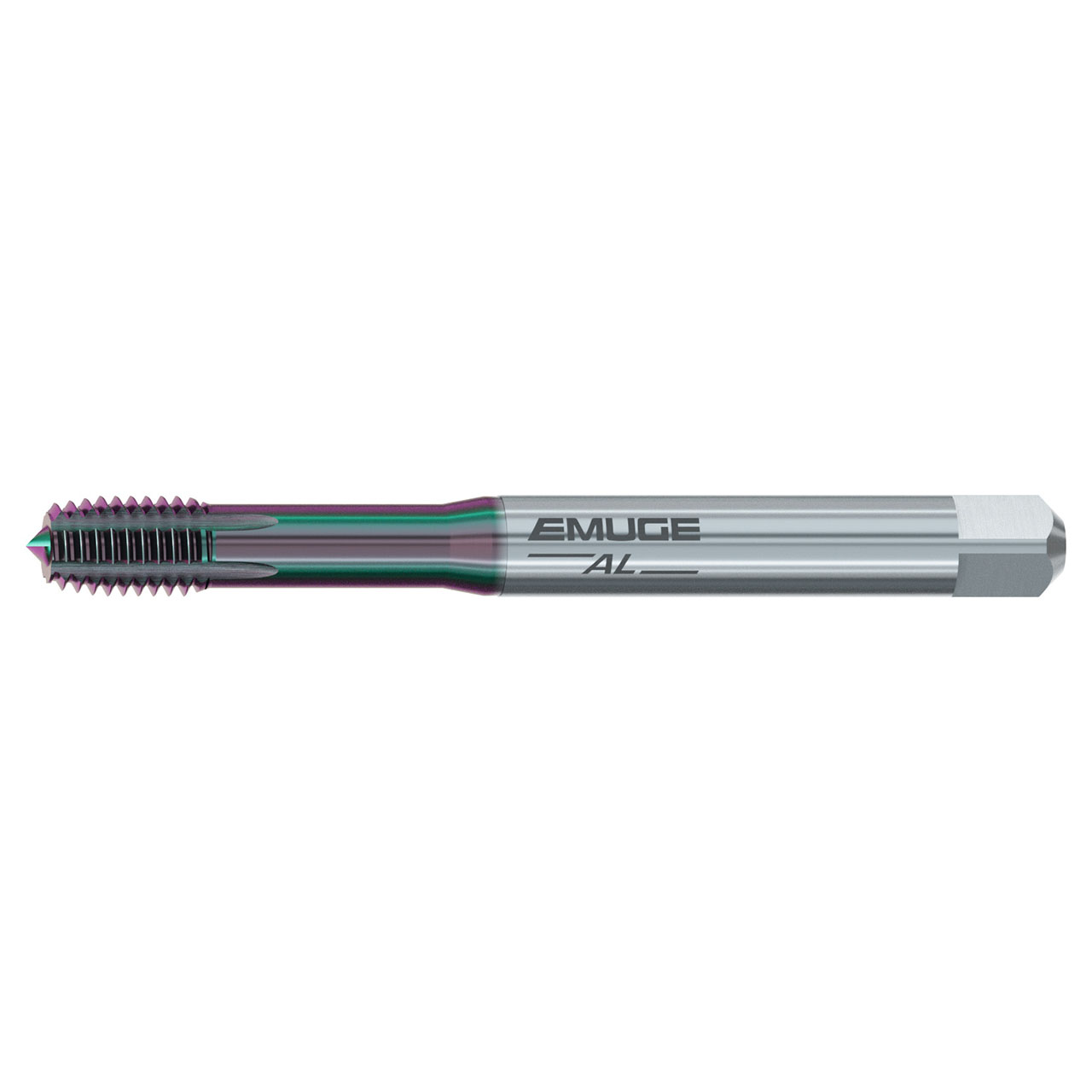

- The InnoForm AL roll form tap is designed for aluminum alloys.
- Short threaded part and special polygon shape for less torque
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU371Q00.5035 |
| Thread Size | #2-64 |
| Thread Diameter Size | #2 |
| Thread Per Inch (TPI) | 64 TPI |
| Tap Square (Decimal Inch) | 0.110" |
| Thread Length (Decimal Inch) | 0.156" |
| Overall Length (Decimal Inch) | 1.772" |
| Length Group | DIN Length |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#2-64
Thread Diameter Size:
#2
Thread Per Inch (TPI):
64 TPI
Overall Length (Inch):
1-44/57"
Overall Length (Decimal Inch):
1.7720"
Overall Length (mm):
45.01mm
Thread Length (Inch):
5/32"
Thread Length (Decimal Inch):
0.1560"
Thread Length (mm):
3.96mm
Coating:
GLT-104
