Features:

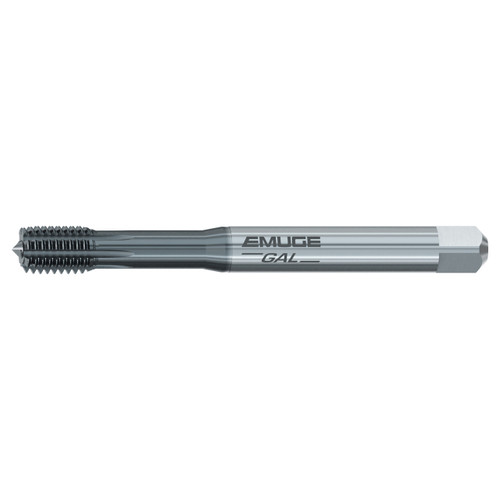

- The InnoForm GAL roll form tap is designed for cast aluminum materials
- Short threaded part and special polygon shape for less torque
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU37Q200.5036 |
| Thread Size | #3-56 |
| Thread Diameter Size | #3 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 56 TPI |
| Tap Square (Decimal Inch) | 0.110" |
| Thread Length (Decimal Inch) | 0.179" |
| Overall Length (Decimal Inch) | 1.969" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.141" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Tool Type | EMUGE GAL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
