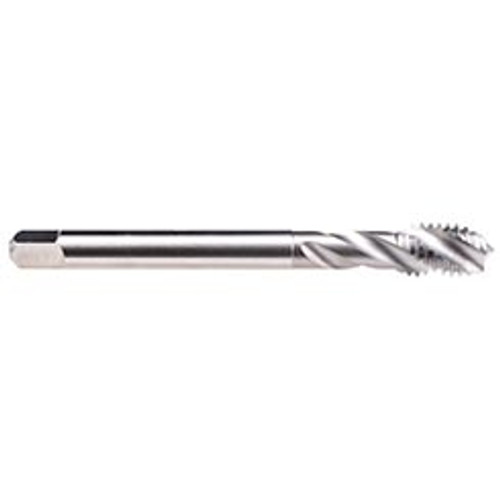

Emuge BU501000.5007 | #10-24 UNC - Tap - Enorm - Blind Hole

$38.61 $37.84
(You save $0.77)
Brand:
Emuge
Shank Diameter (Decimal nch):
0.1940"
Cutting Edge Material:
HSSE
Thread Size:
#10-24
Thread Standard:
UNC
Threads per Inch (TPI):
24 TPI
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
Enorm Steel
Application:
Spiral Flute Taps
Overall Length (Decimal Inch):
2.7560"
interval quantity:
1
SKU:
15044778
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
  • The fast spiral flute (35 Degree) provides good chip removal from blind holes

Product Specifications
Chamfer2-3 P
Chamfer FormC
Pitch24
Size10
Thread Limit2B
Thread StandardUNC
ApplicationSteel, Copper Alloys
Coolant FedNo
Coating/FinishBright
MaterialHSSE
Number of Flutes3
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.194"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)2.756"
Flute DirectionRight Hand
