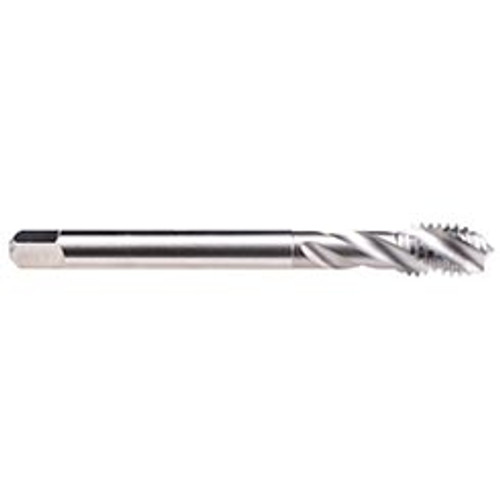

Emuge BU501010.5003 | #4-40 - Tap -Enorm -3B -Blind Hole

$43.58 $42.71
(You save $0.87)
Brand:
Emuge
Shank Diameter (Decimal Inch):
0.1410"
Cutting Edge Material:
HSSE
Thread Size:
#4-40
Thread Standard:
UNC
Threads per Inch (TPI):
40 TPI
Number of Flutes:
2
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
Enorm Steel
Application:
Spiral Flute Taps
Overall Length (Decimal Inch):
2.2050"
interval quantity:
1
SKU:
15044798
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
BU501010.5003-B

Features:

  • The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
  • The fast spiral flute (35 Degree) provides good chip removal from blind holes

Product Specifications
Chamfer2-3 P
Chamfer FormC
Pitch40
Size4
Thread Limit3B
Thread StandardUNC
ApplicationSteel, Copper Alloys
Coolant FedNo
Coating/FinishBright
MaterialHSSE
Number of Flutes2
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.141"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)2.205"
Flute DirectionRight Hand
