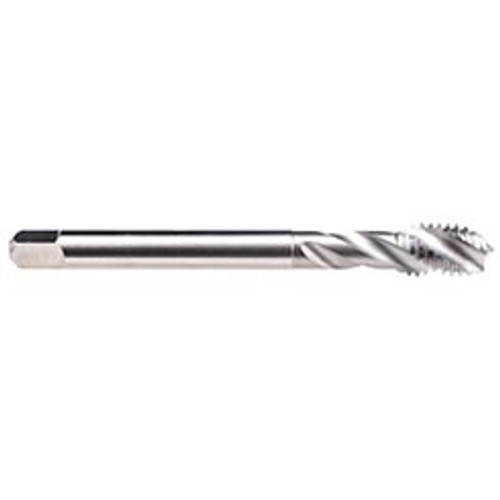

Features:
- The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
- The fast spiral flute (35 Degree) provides good chip removal from blind holes
Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 40 |
| Size | 5 |
| Thread Limit | 3B |
| Thread Standard | UNC |
| Application | Steel, Copper Alloys |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 0.141" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.205" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Shank Diameter (Decimal Inch):
0.1410"
Cutting Edge Material:
HSSE
Thread Size:
#5-40
Thread Standard:
UNC
Threads per Inch (TPI):
40 TPI
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
Enorm Steel
Application:
Spiral Flute Taps
Overall Length (Decimal Inch):
2.2050"
