Features:

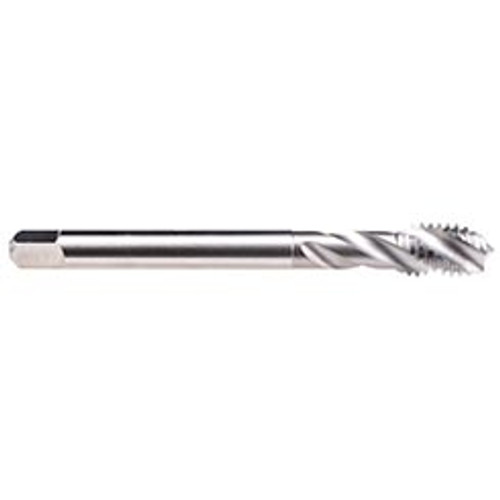

- The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
- The fast spiral flute (35 Degree) provides good chip removal from blind holes
Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 24 |
| Size | 3/8" |
| Thread Limit | 3B |
| Thread Standard | UNF |
| Application | Steel, Copper Alloys |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 0.381" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 3.937" |
| Flute Direction | Right Hand |
