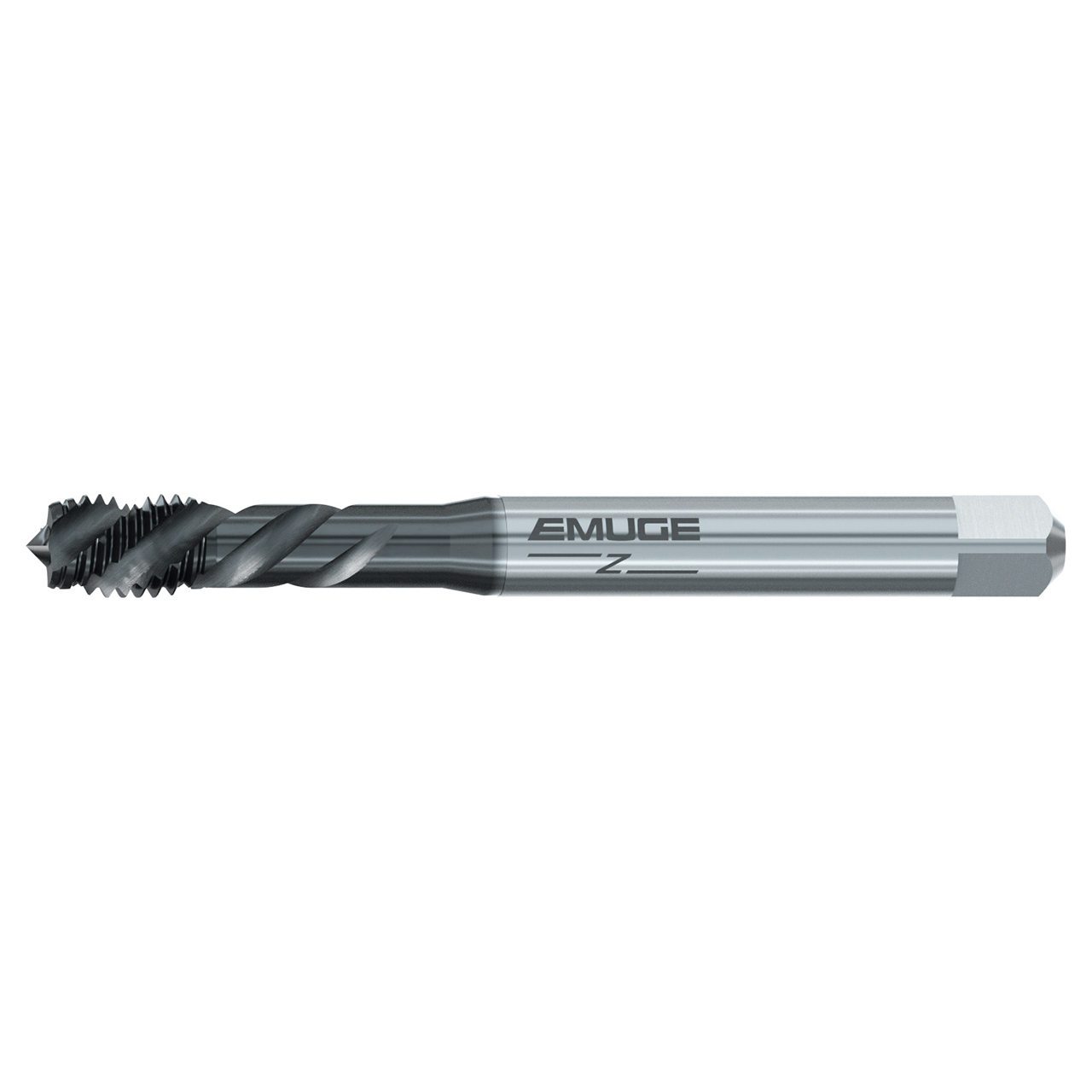

Features:
- The Enorm Z design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU50C460.5042 |
| Thread Size | #12-28 |
| Thread Diameter Size | #12 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 28 TPI |
| Tap Square (Decimal Inch) | 0.165" |
| Thread Length (Decimal Inch) | 0.630" |
| Overall Length (Decimal Inch) | 3.150" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.220" |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Tool Type | Enorm Z |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#12-28
Number of Flutes:
3
Finish/Coating:
GLT-1
Flute Direction:
Left Hand
Threads per Inch (TPI):
28
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
