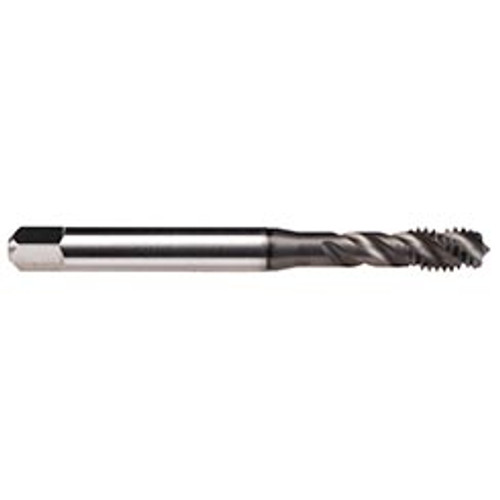

Emuge BU51C410.5635 | STI #6-40 -Tap -EnorMZ/E -GLT-1

$64.95
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
6-40
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
3
Finish/Coating:
GLT-1
Material:
HSSE
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNF
Thread Length (Inch):
15/32"
Thread Length (Decimal Inch):
0.4720"
Thread Length (mm):
11.99mm
Shank Diameter (Inch):
11/64"
Shank Diameter (Decimal Inch):
0.1680"
Shank Diameter (mm):
4.27mm
SKU:
15039067
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
BU51C410.5635-B

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
6-40
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
3
Finish/Coating:
GLT-1
Material:
HSSE
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNF
Thread Length (Inch):
15/32"
Thread Length (Decimal Inch):
0.4720"
Thread Length (mm):
11.99mm
Shank Diameter (Inch):
11/64"
Shank Diameter (Decimal Inch):
0.1680"
Shank Diameter (mm):
4.27mm
